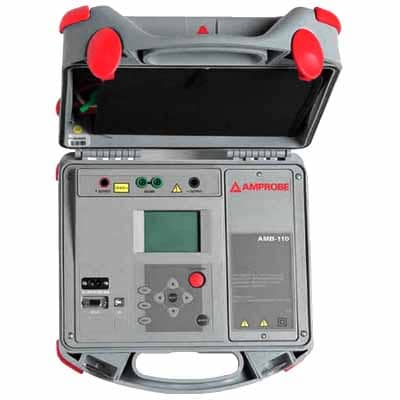

Amprobe AMB-110 Industrial High-Voltage Insulation Tester Price in Bangladesh

Amprobe AMB 110 Industrial High Voltage Insulation Tester Price in Bangladesh is a professional grade electrical testing instrument designed for advanced insulation resistance measurement in high voltage industrial systems. Amprobe AMB 110 Industrial High Voltage Insulation Tester Price in Bangladesh is widely used by engineers and maintenance professionals to ensure electrical safety, system reliability, and early fault detection in critical power environments.

This high end insulation tester is capable of performing precise diagnostics on cables, transformers, motors, generators, and switchgear. It supports selectable test voltages ranging up to 10kV, allowing users to conduct both low and high voltage insulation testing with flexibility and accuracy.

The device is engineered with advanced diagnostic features that help analyze insulation condition in depth. It supports functions such as polarization index, dielectric absorption ratio, dielectric discharge testing, and real time resistance trend monitoring. These features allow professionals to evaluate insulation health more effectively and predict potential failures before they occur.

One of its key strengths is real time graphing of resistance behavior during testing, which provides visual insight into insulation performance over time. This helps technicians make more informed decisions during maintenance and system evaluation.

Built for harsh industrial environments, the Amprobe AMB 110 features a rugged and durable construction that ensures long term reliability. It includes strong safety mechanisms such as automatic discharge after testing, protecting users from residual high voltage after measurements are completed.

The tester also offers data storage and PC connectivity options, allowing users to save, analyze, and document test results for professional reporting and maintenance records. Its clear display and user friendly interface make it suitable for both field and laboratory use.

Overall, this high voltage insulation tester is a powerful solution for professionals who require maximum accuracy, advanced diagnostics, and dependable performance in electrical testing applications.

Key Features: Amprobe AMB-110 Industrial High-Voltage Insulation Tester

Rugged
Reliable
Trusted

Specifications

Specifications: Amprobe AMB-110 Industrial High-Voltage Insulation Tester

FEATURE	AMB-110
Insulation resistance	0 O → 999 kO, 1.00 O → 9.99 MO, 10.0 MO → 100.0 MO, 1.00 O- 9.99 GO
Test voltage and step voltage diaplay range	0 V → 9999 V
Current display range	0.00 nA → 9.99 nA, 10.0 nA → 99.9 nA, 100 nA → 999 nA, 1.00 µA → 9.99 µA, 10.0 µA → 99.9 µA, 100 µA → 999 µA, 1.00 mA → 5.50 mA
Dielectric absorption ratio (DAR)	0.01 → 100.0
Polarization index (PI)	0 → 100.0
Dielectric discharge test (DD)	0 → 100.0
Leakage current display range	0 mA → 5.50 mA
External voltage measurement	0 V → 600 V
Capacitance measurement	0 nF → 99.9 nF, 100 nF → 999 nF, 1 µF → 50.0 µF
Download PC interface	•
Memory size	128 kB
