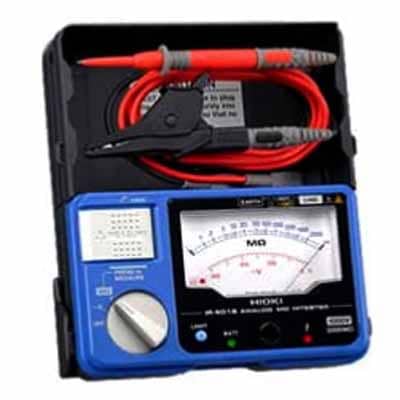

Hioki 3490 ANALOG MΩ HiTESTER Price in Bangladesh

Hioki 3490 ANALOG MΩ HiTESTER Price in Bangladesh is a durable and efficient analog insulation resistance tester designed for accurate electrical measurement in field and industrial environments. Hioki 3490 ANALOG MΩ HiTESTER Price in Bangladesh is widely used by electricians and technicians who prefer analog display for real time visual monitoring and consistent testing performance.

This analog insulation tester is engineered to measure insulation resistance in cables, motors, transformers, and electrical installations with high accuracy. It supports multiple test voltage ranges including 250V, 500V, and 1000V, making it suitable for a wide variety of electrical maintenance and inspection tasks.

The device features an easy to read analog scale with bright LED illumination, allowing clear visibility even in low light working environments. Its needle based display provides instant feedback, helping users observe insulation trends and fluctuations more effectively compared to digital meters.

Hioki 3490 is built with a rugged and impact resistant design that can withstand harsh field conditions. It is designed to endure accidental drops and continuous usage, making it ideal for industrial environments and on site testing applications.

The tester includes essential safety features such as live circuit detection, battery status indication, and automatic discharge after testing. These functions ensure safe operation and reduce the risk of electrical hazards during high voltage testing.

It also offers continuity testing capability, allowing users to perform additional electrical checks with a single device. This improves efficiency and makes it a versatile tool for maintenance and troubleshooting work.

The compact and integrated design includes built in storage for test leads, making it convenient for transportation and quick setup in the field. Its user friendly operation allows technicians to perform measurements easily without complex setup.

Overall, this analog insulation tester is a dependable solution for professionals who require durability, simplicity, and reliable performance in electrical testing applications.

Key Features: Hioki 3490 ANALOG MΩ HiTESTER

The 3-range testing voltage of 250/500 V (insulation resistance testing up to 100 MΩ), and 1000 V (insulation testing up to 4000 MΩ)
Continuity check at 3 Ω range via 200 mA testing
Bright LED luminous scale
Check for live circuits and battery status

Specifications

Specifications: Hioki 3490 ANALOG MΩ HiTESTER

Rated output voltage	250 V DC	500 V DC	1000 V DC
Effective maximum indicated value	100 MΩ	100 MΩ	4000 MΩ
Accuracy 1st effective measuring range	±2 % of scale length 0.05 to 50 MΩ	±2 % of scale length 0.05 to 50 MΩ	±2 % of scale length 2 to 1000 MΩ
Lower limit resistance	0.25 MΩ	0.5 MΩ	1 MΩ
	(Measurement resistance value to maintain testing voltage)
Overload protection	660 V AC (10 sec.)
Low resistance range	3 Ω (at 200 mA testing current), ±0.09 Ω accuracy, 30 Ω (at 20 mA testing current), ±0.9 Ω accuracy, Open-circuit voltage: 4.1 to 6.9 V
AC voltage range	0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, 100 kΩ or more input resistance
Other functions	Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge
Power supply	LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (at 500 V range, no load)
Dimensions and mass	159 mm (6.26 in)W × 177 mm (6.97 in)H × 53 mm (2.09 in)D, 610 g (21.5 oz), (including battery, excluding test lead)
