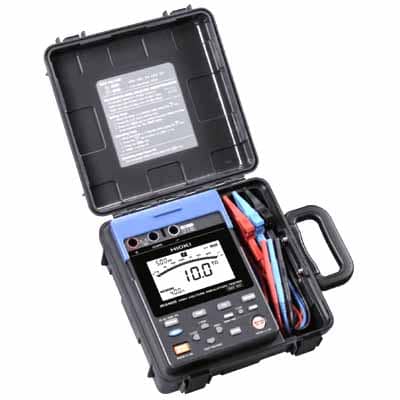

HIOKI IR3455 High Voltage Insulation Tester Price in Bangladesh

HIOKI IR3455 High Voltage Insulation Tester Price in Bangladesh is a high performance testing device designed for accurate insulation resistance measurement in demanding electrical and industrial environments. HIOKI IR3455 High Voltage Insulation Tester Price in Bangladesh delivers reliable results for engineers and technicians who require precision and stability in high voltage applications.

This insulation tester is engineered with advanced technology to ensure safe and efficient measurement of electrical insulation in power systems, industrial machinery, and electrical installations. It is built to support professionals working in maintenance, inspection, and troubleshooting tasks where accuracy and safety are essential.

The device offers high measurement stability and consistent performance even in challenging conditions. Its robust design ensures long lasting durability, making it suitable for continuous use in industrial environments. The intuitive interface allows users to operate it easily, reducing complexity during field testing and improving overall productivity.

HIOKI IR3455 is designed to enhance safety during high voltage testing by providing reliable insulation readings that help prevent electrical failures and hazards. It supports efficient diagnostics, allowing users to quickly identify insulation issues and take corrective actions. This makes it a valuable tool for ensuring the reliability of electrical systems and equipment.

With its advanced engineering and trusted build quality, this insulation tester is widely used in power plants, manufacturing facilities, electrical maintenance services, and engineering industries. It helps professionals maintain system integrity and ensures compliance with safety standards.

Overall, this device stands out as a dependable solution for high voltage insulation testing, combining accuracy, durability, and ease of use in one powerful instrument.

Key Features: Hioki IR3455 HIGH VOLTAGE INSULATION TESTER

Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
Wide testing voltage range, up to 5.00 kV from 250 V DC
Wide measurement insulation range, up to 10 TΩ
PI (Polarization Index) and DAR (Dielectric Absorption Ratio) automatically calculated / display
Data memory function to reduce handwritten notes
Bright LED luminous scale
Extended operating temperature range of -10 ℃ to 50 ℃

Specifications

Specifications: Hioki IR3455 HIGH VOLTAGE INSULATION TESTER

Test voltage	250 V to 5.00 kV DC, (Possible in 25 V steps between 250 V and 1 kV and in 100 V steps between 1 and 5 kV)
Measurement range	0.00 MΩ to 500 GΩ (250 V) 0.00 MΩ to 1.00 TΩ (500 V) 0.00 MΩ to 2.00 TΩ (1 kV) 0.00 MΩ to 5.00 TΩ (2.5 kV) 0.00 MΩ to 10.0 TΩ (5 kV)
Measurement current	1 mA (Test voltage 250 V to 1.00 kV), 0.5 mA (Test voltage 1.10 kV to 2.50 kV) 0.25 mA (Test voltage 2.60 kV to 5.00 kV), Short-circuit current: 2 mA or less
Resistance range	10 MΩ to 10 TΩ, 7 ranges (auto range)
Accuracy	±5% rdg. ±5 dgt. Up to [Test voltage (setting value)/Resistance measurable at 100 nA] ±20% rdg. ±5 dgt. [Test voltage (setting value)/Resistance measurable at 100 nA] to [Test voltage (setting value)/Resistance measurable at 1 nA] or 500 GΩ ±30% rdg. ±50 dgt. [Test voltage (setting value)/Resistance measurable at 1 nA] or 501 GΩ to 9.99 TΩ
Leakage current measurement	1.00 nA to 1.20 mA, 6 ranges (current measurement that occurs when test voltage is generated) Accuracy ±2.5% rdg. ±5 dgt. (1 mA range); refer to complete catalog for other ranges
Voltage measurement	±50 V to ±1.00 kV DC, 50 V to 750 V AC (50/60 Hz), Accuracy: ±5 % rdg. ±5 dgt. , Input resistance: Approx. 10 MΩ
Temperature measurement	-10.0 ˚C to 70.0 ˚C, 3 ranges (used with optional sensor) Accuracy ±1.0 ˚C (0.0 ˚C to 40.0 ˚C); refer to complete catalog for other ranges
Other functions	Insulation Diagnosis (Temperature compensation, PI/DAR display, Step voltage test), Data memory, Communication (USB 2.0, PC application software), auto discharge, hot conductor warning indication, etc.
Display	Digital LCD, max. 999 dgt. with backlight, Bar graph display
Power supply	LR6 (AA) alkaline batteries ×6, Battery pack 9459, or AC adapter 9753 or 9418-15 (100 - 240 VAC) Continuous use : [LR6] 5 hr, [9459] 9 hr, (Occur 5 kV, +/- open terminal)
Dimensions and mass	260 mm (10.24 in)W × 250.6 mm (9.87 in)H × 119.5 mm (4.70 in)D, 2.8 kg (98.8 oz)
