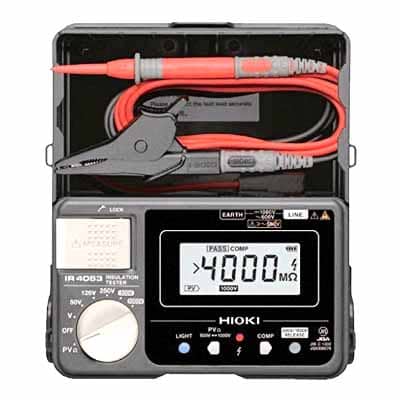

Hioki IR4053 Digital Insulation Resistance Tester Price in Bangladesh

Hioki IR4053 Digital Insulation Resistance Tester is a reliable and high performance instrument, and the Hioki IR4053 Digital Insulation Resistance Tester Price in Bangladesh often draws attention from professionals seeking dependable testing solutions. Designed for accuracy and ease of use, this device is ideal for electrical engineers, maintenance teams, and technicians who require consistent insulation testing in demanding environments.

Built with advanced measurement capabilities, the tester ensures precise insulation resistance readings across a wide range of applications. Its intuitive interface allows users to operate the device efficiently without complex setup, making it suitable for both experienced professionals and those new to insulation testing. The clear digital display enhances visibility, enabling quick interpretation of results even in challenging work conditions.

Durability is a key strength of this tester, as it is engineered to withstand tough industrial use. The robust construction protects internal components, ensuring long term reliability and reduced maintenance needs. This makes it an excellent choice for fieldwork as well as workshop environments where consistent performance is essential.

The device also emphasizes safety, incorporating protective features that help safeguard both the user and the equipment during operation. Its stable performance ensures accurate readings without fluctuations, allowing professionals to make informed decisions when assessing electrical systems. Whether used for routine inspections or troubleshooting, it delivers dependable results every time.

Portability adds to its practicality, as the lightweight and compact design makes it easy to carry and use in various locations. This flexibility supports technicians working across multiple sites, ensuring that high quality testing is always within reach.

Overall, this insulation resistance tester stands out for its precision, user friendly design, and durable build quality. It is a trusted tool for maintaining electrical safety and performance, making it a valuable addition to any professional toolkit.

Hioki IR4053 INSULATION TESTER

Safely and accurately measure PV insulation resistance even while generating solar power
Built-in PV dedicated function, display measurements in 4 seconds
Five ranges (50/125/250/500/1000V) built-in for normal insulation resistance measurement
Built-in 1000 VDC voltage measurement for open voltage tests of PV systems that support 1000 V
Built-in comparator function
Drop-proof design withstands drop onto concrete from a height of 1 meter

Specifications

Specifications: Hioki IR4053 INSULATION TESTER

Rated output voltage	500 V DC	1000 V DC
Effective maximum indicated value	2000 MΩ	4000 MΩ
Measuring range/ Accuracy	0.200 to 500 MΩ / ±4% rdg. 501 to 2000 MΩ / ±8% rdg.	0.200 to 1000 MΩ / ±4% rdg. 1010 to 4000 MΩ / ±8% rdg.
Other measuring range / Accuracy	0 to 0.199 MΩ / ±2% rdg. ±6 dgt.

Basic specifications ■Insulation resistance measurement

Rated output voltage	50 V DC	125 V DC	250 V DC	500 V DC	1000 V DC
Effective maximum indicated value	100 MΩ	250 MΩ	500 MΩ	2000 MΩ	4000 MΩ
Accuracy 1st effective measuring range MΩ	±4% rdg. 0.200 to 10.00	±4% rdg. 0.200 to 25.0	±4% rdg. 0.200 to 50.0	±4% rdg. 0.200 to 500	±4% rdg. 0.200 to 1000
Lower limit resistance	0.05 MΩ	0.125 MΩ	0.25 MΩ	0.5 MΩ	1 MΩ
Overload protection	600 V AC (10 s)	600 V AC (10 s)	600 V AC (10 s)	600 V AC (10 s)	1200 V DC (10 s)
DC voltage range	4.2 V (0.001 V resolution) to 1000 V (1 V resolution), 4 ranges, Accuracy: ±1.3% rdg. ±4 dgt., (Ranges in excess of 1000 V are not guaranteed for accuracy.)
AC voltage range	420 V (0.1 V resolution)/600 V (1 V resolution), 2 ranges, 50/60 Hz, Accuracy: ±2.3% rdg. ±8 dgt., (Ranges in excess of 600 V are not guaranteed for accuracy.)
Display	Semi-transmissive FSTN LCD with back lighting, Backlight
Response time	Insulation resistance range: 1 second, PVΩ function: 4 seconds (based on in-house tests)
Other functions	Live circuit indicator, automatic electric discharge, automatic DC/AC detection, comparator, drop proof, auto power save
Power supply	AA alkaline batteries (LR6) ×4, Continuous operating time: Approx. 20 hours (based on in-house tests)
Dimensions and mass	159 mm (6.26 in) W × 177 mm H (6.97 in) H × 53 mm (2.09 in) D, Approx. 600 g (21.2 oz) (including batteries, excluding test lead)
