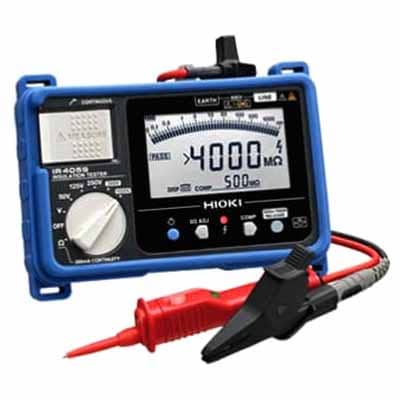

Hioki IR4059 Insulation Tester Price in Bangladesh

Hioki IR4059 Insulation Tester is a modern and efficient testing solution, and the Hioki IR4059 Insulation Tester Price in Bangladesh is often searched by professionals who need accurate and smart insulation measurement tools. Designed for precision and convenience, this device is widely used in electrical maintenance, inspection, and troubleshooting tasks.

Equipped with advanced digital technology, the tester delivers stable and fast insulation resistance readings, allowing users to complete measurements efficiently in demanding environments. It features multiple testing ranges, making it suitable for a wide variety of applications including electrical installations, motors, and industrial equipment. The integrated bar graph display enhances visibility by providing real time feedback during testing, helping users quickly interpret results.

One of the standout features of this tester is its smart connectivity. With optional Bluetooth functionality, users can transfer measurement data directly to mobile devices for analysis and reporting. This feature improves workflow efficiency and reduces the need for manual data recording, making it ideal for modern maintenance practices.

The device is designed with user convenience in mind. Its multi functional test lead includes a remote switch, allowing technicians to start tests easily while keeping both hands on the equipment. The built in LED light improves visibility in low light conditions, ensuring accurate operation even in challenging workspaces.

Safety is a key focus of the Hioki IR4059. It includes protective features such as voltage detection and controlled test voltage selection, helping prevent accidental misuse. The automatic discharge function ensures that any stored electrical charge is safely released after testing, protecting both the user and the equipment.

Durability further enhances its value, as the tester is built to withstand tough working environments. Its rugged construction and drop resistant design ensure long lasting performance, even with regular field use. This makes it a dependable tool for professionals who require consistent and reliable results.

Overall, this insulation tester stands out for its precision, smart features, and durable design. It is an excellent choice for professionals seeking a reliable and efficient solution for insulation testing across a wide range of electrical applications.

Key Features: Hioki IR4059 Insulation Tester

5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ
Digital bar graph
Multi-functional test lead with remote switch improves work efficiency: flashlight, remote test start, LED light for PASS/FAIL notification.
Stable and high-speed digital readings; 0.3 second response time for PASS/ FAIL judgment.
Bright LED, luminous LCD, test lead (included accessory: L9788-10) with bright LED lamp to illuminate near hand.
Continuity check via 200 mA testing
Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles
Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
Drop proof onto concrete from 1m (3.28 feet)

Specifications

Specifications: Hioki IR4059 Insulation Tester

Accuracy guaranteed: 1 year

Rated output voltage	50 V DC	125 V DC	250 V DC	500 V DC	1000 V DC
Effective maximum indicated value	100 MΩ	250 MΩ	500 MΩ	2000 MΩ	4000 MΩ
Accuracy 1st effective measuring range MΩ	±2 % rdg. ±2 dgt. 0.200 - 10.00	±2 % rdg. ±2 dgt. 0.200 - 25.0	±2 % rdg. ±2 dgt. 0.200 - 50.0	±2 % rdg. ±2 dgt. 0.200 - 500	±2 % rdg. ±2 dgt. 0.200 - 1000
Lower limit resistance	0.05 MΩ	0.125 MΩ	0.25 MΩ	0.5 MΩ	1 MΩ
Overload protection	600 V AC (10s)				660 V AC (10s)
DC voltage range	4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges, Accuracy: ±1.3% rdg. ±4 dgt., Input resistance: 100 kΩ or higher
AC voltage range	420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz, Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier
Low resistance range	For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less)
Display	Semi-transmissive FSTN LCD with back lighting, bar-graph indicator
Response time	Approx. 0.3 second for PASS/FAIL decision (based on in-house testing)
Other functions	Indicate MΩ measurement value after a lapse of one minute, Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save
Power supply	LR6 (AA) alkaline batteries × 4, Continuous use: 20 hours (based on in-house testing) Number of measurements: 1000 times (at 5 s ON, 25 s OFF cycle, insulation measurement of lower limit resistance value to maintain nominal output voltage)
Dimensions and mass	160 mm (6.30 in) W × 98 mm (3.86 in) H× 46 mm (1.81 in) D, 536 g (18.9 oz) (including batteries, excluding test leads)
Included accessories	Connection cable L4930 ×1, Alligator clip set L4935 ×1, Test pin set L4938 ×1, Neck strap ×1, Test lead set with remote switch (Red) LR9788-10×1, Protector Z5042×1, Instruction manual ×1, LR6 (AA) alkaline batteries ×4
