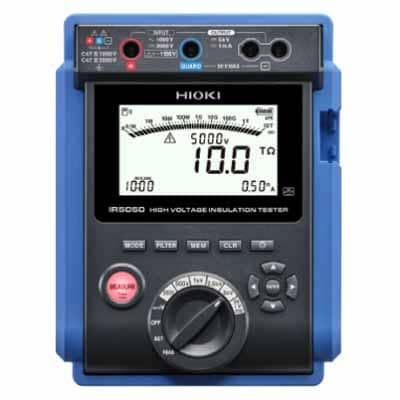

Hioki IR5050 High Voltage Insulation Tester Price in Bangladesh

Hioki IR5050 High Voltage Insulation Tester is a professional grade electrical testing instrument, and the Hioki IR5050 High Voltage Insulation Tester Price in Bangladesh is widely searched by engineers and technicians who need accurate insulation resistance measurement for high voltage equipment and industrial systems. It is designed to deliver stable and reliable performance in demanding testing environments.

This advanced insulation tester supports a wide test voltage range and provides highly accurate resistance measurement for cables, transformers, motors, and other electrical installations. Its precision measurement technology ensures stable readings even when testing extremely high resistance levels, making it suitable for critical maintenance and diagnostic applications.

One of the key strengths of this device is its advanced insulation diagnostic capability. It automatically calculates important parameters such as polarization index, dielectric absorption ratio, and dielectric discharge, allowing users to evaluate insulation condition more effectively. These features help detect early signs of insulation deterioration and improve preventive maintenance planning.

The Hioki IR5050 also enhances productivity through built in data storage and connectivity options. It supports wireless and USB communication, enabling users to transfer data easily and generate reports for analysis and documentation. This makes it highly efficient for industrial workflows where accurate record keeping and reporting are essential.

Designed for both field and industrial use, the instrument features a compact and durable construction that ensures long term reliability. Its intuitive control interface simplifies operation, allowing professionals to perform tests quickly and efficiently. Safety is also a priority, with features like automatic discharge and live circuit indication helping reduce operational risks during high voltage testing.

In practical applications, the Hioki IR5050 is widely used in power plants, industrial maintenance, electrical infrastructure testing, and renewable energy systems. It helps ensure equipment safety, improve system reliability, and maintain compliance with industry standards.

Overall, the Hioki IR5050 High Voltage Insulation Tester stands out as a dependable and high performance solution for professionals who require accurate diagnostics, durable design, and efficient testing capabilities in high voltage environments.

Key Features: Hioki IR5050 High Voltage Insulation Tester

Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
Wide testing voltage range, up to 5000 V from 250 V DC
Wide measurement insulation range, up to 10 TΩ
Automatically calculated and displayed insulation diagnostics (PI, DAR, and DD)
Data memory functions increase your work efficiency by eliminating human errors from manual reporting.
Selectable Interface Compatibility: Offers both wireless and USB connectivity options.
Compact and lightweight, equipped with an IP65-rated carrying case

Specifications

Specifications: Hioki IR5050 High Voltage Insulation Tester

Accuracy guaranteed: 1 year

Measurement parameters	• Insulation resistance • Leakage current • Voltage • Capacitance (DD function)
Max. rated voltage to terminals	1000 V AC, 2000 V DC
Max. rated voltage to ground	1000 V (CAT IV), 600 V (CAT III)
Operating temperature and humidity range	-20°C to 50 °C (*1) (no condensation)
Storage temperature and humidity range	-25°C to 65°C (-13°F to 149°F), less than 80% RH (no condensation)
Dustproof/waterproof	IP40 (with protector attached, excluding terminals) IP65 (CARRYING CASE C0212)
Standards	EN61010 (safety), EN61326 (EMC), IEC 61557-1, IEC 61557-2 (Insulation resistance tester)
Power supply	• LR6 (AA) alkaline battery × 8 • HR6 (AA) nickel-metal hydride (NiMH) rechargeable battery × 8
Continuous operating time (*2)	Approx. 5 hours without Z3210 installed; approx. 4 hours with Z3210 installed and using wireless communication
Dimensions and weight	195 mm (7.68 in.) W × 254 mm (10 in.) H × 89 mm (3.50 in.) D, 1.7 kg (59.97 oz.) (including batteries)
Included accessories	Test lead L9850-01 ×1, Test lead L9850-02 ×1, Test lead L9850-03 ×1, Alligator clip L9851-01 ×1, Alligator clip L9851-02 ×1, Alligator clip L9851-03 ×1, Carrying Case C0212 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, Operating precautions ×1

*1:-20°C to 40°C (-4°F to 104°F), less than 80% RH , 40°C to 45°C (104°F to 113°F), less than 60% RH , 45°C to 50°C (113°F to 122°F), less than 50% RH
*2:When using alkaline batteries, 5 kV generated, +/- terminals open, backlight off and comparator off

Functions

Insulation diagnosis

PI, DAR, DD, SV, Ramp, Timer

Others

Battery charge indicator, live circuit indicator, automatic power save, automatic discharge, backlight, buzzer, manual recording, logging recording, temperature and humidity input, elapsed time display, clock, filter, hardware filter, data-hold, system reset, USB communication (only when DT4900-01 is installed), wireless communication (only when Z3210 is installed), comparator, resistance gauge display, switching of insulation diagnosis function, breakdown cut-off.

Insulation resistance measurement

Test voltage range	DC 250 V to 5.20 kV DC
User-set test voltage	250 V to 1 kV: in 10 V increments; 1 kV to 5 kV: in 25 V increments
Test voltage preset	250 V	500 V	1000 V	2500 V	5000 V
Guaranteed accuracy range (1)	0.00 MΩ〜2.50 GΩ ±5% rdg ±5 dgt	0.00 MΩ〜5.00 GΩ ±5% rdg ±5 dgt	0.00 MΩ〜10.0 GΩ ±5% rdg ±5 dgt	0.00 MΩ〜25.0 GΩ ±5% rdg ±5 dgt	0.00 MΩ〜50.0 GΩ ±5% rdg ±5 dgt
Guaranteed accuracy range (2)	2.51 GΩ〜500 GΩ ±20% rdg	5.01 GΩ〜1.00 TΩ ±20% rdg	10.1 GΩ〜2.00 TΩ ±20% rdg	25.1 GΩ〜5.00 TΩ ±20% rdg	50.1 GΩ〜10.00 TΩ ±20% rdg
Rated current	1 mA to 1.2 mA
Short-circuit current	2 mA or less
Possible number of measurements	200 times or more on one set of fully-charged batteries

Leakage current measurement

Measurement range (auto)	10 nA	100 nA	1000 nA	10 μA	100 μA	1 mA
Display range	0.00 nA to 9.99 nA	9.0 nA to 99.9 nA	90 nA to 999 nA	0.90 μA to 9.99 μA	9.0 μA to 99.9 μA	90 μA to 999 μA (3) 0.90 mA to 3.00 mA (4)
Resolution	0.01 nA	0.1 nA	1 nA	0.01 μA	0.1 μA	3: 1 μA 4: 0.01 mA

Voltage measurement

Guaranteed accuracy range	30 V to 1,000 V AC (45 Hz to 65 Hz), ±10 V to ±2,000 V DC
Accuracy	±3% rdg. ±3 dgt.
Input resistance	500 kΩ or more (DC, 45 Hz to 65 Hz)
Overload protection	1100 V AC (1 min., between +/- terminals) 2200 V DC (1 min., between +/- terminals)

Capacitance measurement

Capacitance is automatically measured after insulation resistance measurement is over (not measured if output voltage is 250 V or less)

Accuracy	±10% rdg. ±5 nF (guaranteed accuracy range: 10.0 nF to 25.0 µF)
Measurement range	100 nF	1000 nF	10 μF
Display range	0.0 nF to 99.9 nF	100 nF to 999 nF	1.00 μF to 9.99 μF (5) 10.0 μF to 25.0 μF (6)
Resolution	0.1 nF	1 nF	5: 0.01 μF 6: 0.1 μF
