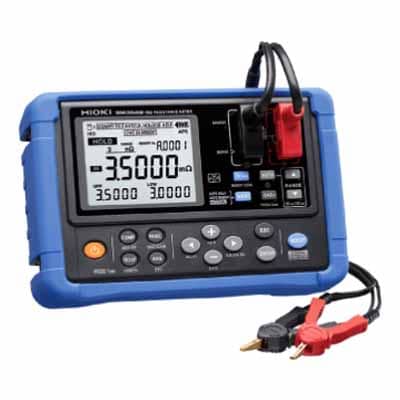

Hioki Rm3548-50 Resistance Meter Price in Bangladesh

Hioki RM3548-50 Resistance Meter is a high precision measurement instrument designed for advanced electrical and industrial applications, and the Hioki RM3548-50 Resistance Meter Price in Bangladesh is often searched by professionals who require extremely accurate low resistance measurement solutions. This device is widely used in fields such as EV manufacturing, aerospace maintenance, motor testing, and industrial quality control.

Built with advanced four wire measurement technology, the meter delivers highly accurate low resistance readings with excellent stability. It is designed to detect minute resistance values that standard meters cannot measure, making it essential for precision engineering tasks. The fast response time and stable measurement performance ensure reliable results even in demanding industrial environments.

The device features a clear digital display that provides easy readability of measurement data. Its user friendly interface allows technicians to operate the instrument efficiently without complex setup procedures. The built in comparison and judgment functions help users quickly determine whether measured values fall within acceptable ranges, improving workflow efficiency during testing operations.

One of the key strengths of this resistance meter is its ability to support high precision applications where measurement accuracy is critical. It is particularly useful in EV battery systems, motor windings, busbars, and industrial connections where even minor resistance variations can impact performance and safety. The instrument ensures consistent and repeatable results, making it highly reliable for quality assurance processes.

Durability is another important feature of the Hioki RM3548-50. It is designed with a robust structure suitable for industrial environments, ensuring long term performance even under frequent use. Its compact and portable design makes it easy to carry between testing locations, supporting field engineers and maintenance teams who work across multiple sites.

The meter also supports data management capabilities, allowing users to store and analyze measurement results for documentation and reporting purposes. This helps improve traceability and supports modern industrial quality control systems.

Safety and reliability are key priorities in its design, ensuring stable operation during high precision testing tasks. Its advanced measurement system reduces noise interference and improves accuracy, making it suitable for critical engineering applications where precision is essential.

Overall, this insulation resistance meter stands out for its ultra high accuracy, advanced measurement technology, and durable industrial design. It is an essential tool for professionals who require dependable and precise low resistance measurement in demanding technical environments.

Key Features: Hioki Rm3548-50 Resistance Meter

0.02% basic accuracy, 0.1 µΩ max. resolution, 1 A max. testing current
Measure from 0.1 µΩ (testing current 1 A) to 3.5 MΩ
Automatic temperature correction ensures accurate results & faster testing
Advanced Connectivity: seamlessly integrate data with Excel® and a mobile app to manage & analyze data efficiently (*1)
Protections for safe operation: halts operation & triggers alerts when incorrect voltage inputs are detected
Versatile Applications: Ideal for EV, aircraft, & motor/transformer maintenance with various probe options

Specifications

Basic specifications: Hioki Rm3548-50 Resistance Meter

Accuracy guaranteed: 1 year

Resistance range	3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current	[at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage	5.5 V DC max.
Temperature measurement	-10.0°C to 99.9°C, accuracy: ±0.5°C (Temperature Sensor Z2002 and RM3548-50 combined accuracy)
Measurement speed	Fixed
Display refresh rate	Without OVC: approx. 100 ms With OVC: approx. 230 ms
Functions	Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS), Averaging, panel store/panel load, USB communication interface (RM3548-50 internal memory is recognized as a mass storage device when connected to a PC), wireless communication via Bluetooth® (Z3210 is necessary)
Memory storage	Number of recordable data points: up to 1000 for manual/auto, up to 6000 for interval Interval: 0.2 s to 10.0 s (0.2 s step) Acquisition of data from memory: display, USB mass storage (CSV, TXT files)
Power supply	LR6 alkaline batteries × 8 HR6 nickel-metal hydride batteries × 8 Continuous use: approx. 10 hours (under our company’s conditions) Rated voltage: 5 VA max.
Dimensions and weight	Approx. 199 mm (7.8 in.) W × 132 mm (5.2 in.) H × 60 mm (2.4 in.) D (including the protector) Approx. 890 g (31.4 oz) (including the batteries and protector)
Included accessories	Clip Type Lead L2107 ×1, Temperature Sensor Z2002 ×1, Protector Z5041 ×1, LR6 alkaline battery ×8, Instruction Manual ×1, USB Cable (A to mini-B) ×1, Strap ×1, Spare fuse ×1
