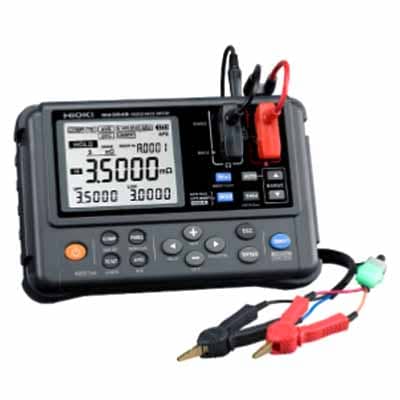

Hioki RM3548 Hioki Resistance Meter Price in Bangladesh

Hioki RM3548 Resistance Meter is a high precision portable DC resistance measurement instrument designed for advanced industrial and EV applications, and the Hioki RM3548 Hioki Resistance Meter Price in Bangladesh is commonly searched by engineers and technicians who need ultra accurate low resistance testing solutions. This device is widely used in motor testing, transformer inspection, EV battery systems, and heavy industrial maintenance.

Built with advanced four wire measurement technology, the RM3548 delivers extremely accurate readings from micro-ohm to mega-ohm ranges. It ensures stable and repeatable measurements by eliminating errors caused by lead and contact resistance. This makes it highly reliable for precision testing of windings, busbars, welds, and electrical connections in critical systems.

The device is designed for portability without compromising performance. It supports high test current capability and fast response measurement, allowing technicians to perform efficient field testing on large equipment. Its memory function can store measurement data, helping engineers analyze and document results easily during maintenance or inspection tasks.

One of the key strengths of the RM3548 is its suitability for EV and industrial maintenance applications. It is widely used for checking motor winding resistance, battery connection quality, and equipotential bonding in electric vehicles. It also meets strict international safety requirements, making it a trusted tool in modern EV servicing environments.

The instrument features a user friendly interface with clear digital display and simple operation, allowing both experienced engineers and field technicians to use it efficiently. It is designed to support stable operation in demanding environments, ensuring consistent performance even during long testing sessions.

Durability and reliability are core design priorities of this resistance meter. Its rugged build quality ensures long term use in industrial conditions, while its portable design makes it convenient for on site maintenance and field inspections.

In Bangladesh, the RM3548 is not commonly stocked in retail shops and is usually available through import or quotation based industrial suppliers. This makes it a specialized professional tool rather than a general market product.

Overall, this insualtion resistance meter stands out for its high accuracy, EV ready capability, and industrial grade reliability. It is an essential instrument for professionals who require precise resistance measurement in advanced engineering and maintenance applications.

Key Features: Hioki RM3548 Hioki Resistance Meter

0.02 % basic accuracy, 0.1 μΩ max. resolution, 1A max. testing current
Measure from 0.0 μΩ (testing current 1 A) to 3.5 MΩ
Easily record up to 1,000 data points in memory simply by applying the instrument’s probes
Smoothly capture temperature-rise test data using interval measurement
Portable design is ideal for maintenance and testing of large equipment

Specifications

Basic Specifications: Hioki RM3548 Hioki Resistance Meter

Accuracy guaranteed: 1 year

Resistance range	3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current	[at 3 mΩ range] 1 A DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage	5.5 V DC max.
Temperature measurement	-10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2002 and RM3548 combined accuracy)
Measurement speed	Fixed
Display refresh rate	Without OVC: approx. 100ms, With OVC: approx. 230ms
Functions	Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS), Averaging, panel store/panel load, USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC)
Memory storage	Number of recordable data points: (manual/auto) Up to 1,000, (interval) Up to 6,000; Interval: 0.2 to 10.0s (0.2s steps); Acquisition of data from memory: display, USB mass storage (CSV, TXT files)
Power supply	LR6 (AA) Alkaline batteries ×8, Continuous use: 10 hours (Under our company’s conditions), Rated power consumption: 5 VA max.
Dimensions and mass	192 mm (7.56 in) W × 121 mm (4.76 in) H × 55 mm (2.17 in) D, 770 g (27.2 oz)
Included accessories	Clip type lead L2107 ×1, Temperature sensor Z2002 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, USB Cable(A-to-mini B type) ×1, Strap ×1, Spare fuse ×1
