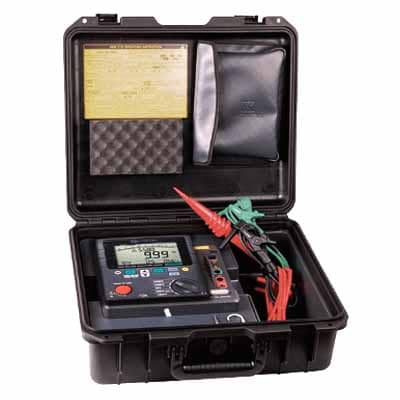

Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester Price in Bangladesh

Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester Price in Bangladesh is a premium grade electrical testing instrument designed for high voltage insulation resistance measurement in industrial and power system applications. Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester Price in Bangladesh is widely used by engineers, utility technicians, and maintenance professionals for accurate diagnostics and safe electrical system evaluation.

This advanced insulation tester supports a wide test voltage range from low levels up to 5kV, making it suitable for testing cables, transformers, motors, generators, and switchgear. It delivers precise insulation resistance measurements to help identify insulation degradation and prevent electrical failures before they occur.

The device is engineered with advanced diagnostic testing capabilities including insulation resistance, polarization index, dielectric absorption ratio, and other time based measurement functions. These features allow users to analyze insulation condition in depth and ensure long term equipment reliability.

Kyoritsu 3127 is built with a rugged and durable design, making it ideal for harsh industrial environments and field operations. It provides stable performance even under electrically noisy conditions, ensuring consistent and trustworthy results during critical testing tasks.

The tester includes a large digital display with bar graph indication for easy reading of measurement data. It also features built in memory and data logging functions, allowing users to store and review test results for documentation and maintenance records.

Safety is a key focus of this instrument, with automatic discharge functionality that safely releases stored electrical energy after testing. This helps protect both the user and the equipment during operation.

It is widely used in power plants, industrial facilities, electrical maintenance services, and infrastructure projects where high voltage insulation testing is essential for safety and reliability.

Overall, this insulation resistance tester is a powerful and dependable solution for professionals who require accuracy, durability, and advanced diagnostic capability in electrical testing applications.

Key Features: Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester

Insulation Resistance up to 10 Tera-Ohms
Wide test voltage from 250V to 5,000V
Range of Diagnostic Insulation Tests (IR, PI, DAR, DD, SV, RAMP)
Breakdown and Burn Modes
Capacitance and Leakage Current
Memory and Logging Functions
Large backlit display with bar graph indication
High 5mA short circuit test current for fast measurement
Inbuilt low pass filter for use in electrically noisy environments
Wireless communication by Bluetooth for transferring and showing real-time data to PC and Android mobile devices
Robust field case and design for field use with an IP65 rating (with the lid closed)
Powered by a rechargeable battery
The safety rating of CATIV 600V
Excellent performance to price ratio

Specifications

Specifications: Kyoritsu 3127 Digital High Voltage 5kV Insulation Resistance Tester

Test voltage		250V (*1)	500V	1000V	2500V	5000V
Max measurement value		9.99GΩ	99.9GΩ	199GΩ	999GΩ	9.99TΩ
Accuracy		0.0 - 99.9MΩ ±5%rdg±3dgt	0.0 - 999MΩ ±5%rdg±3dgt	0.0 - 1.99GΩ ±5%rdg±3dgt	0.0 - 99.9GΩ ±5%rdg±3dgt	0.0 - 99.9GΩ ±5%rdg±3dgt
Accuracy		0.1G - 9.99GΩ ±20%rdg	1G - 99.9GΩ ±20%rdg	2G - 199GΩ ±20%rdg	100G - 999GΩ ±20%rdg	0.1T - 9.99TΩ ±20%rdg
Short circuit current		Max 5.0mA
Output voltage
	Accuracy	-10 - +10%	-10 - +20%	0 - +20%
	Variable	-			-20% - 0% (5% step)
	Monitor	±10%rdg±20V

Voltage measurement

Measuring range	AC: 30 - 600V (50/60Hz), DC: ±30 - ±600V
Accuracy	±2%rdg±3dgt

Current measurement

Measuring range	0.00nA - 5.50mA
Accuracy	±10%rdg (*2)

Capacitance measurement

Measuring range	5.0nF - 50.0µF, 5.0nF - 25.0µF (5000V)
Accuracy	±5%rdg±5dgt

General

Applicable standards	IEC 61010-1, 61010-2-030 CAT Ⅳ 600V Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2
Power source	Rechargeable Battery (Lead-acid Battery) 12V (*3) Charging power: DC 15VA MAX
communication interface	Bluetooth: Ver2.1 + EDR Class2, USB: Ver1.1
Dimensions	208 (L) × 225 (W) × 130 (D) mm 380 (L) × 430 (W) × 154 (D) mm (Hard case)
Weight	3127: 4kg Approx. (including battery), Total: 8kg Approx. (including Accessories)
