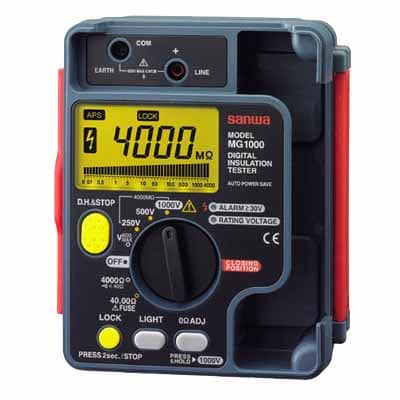

Sanwa MG 1000 Digital Insulation Tester
Reliable Insulation Testing with Japanese Precision
Product Overview
Sanwa MG 1000 Digital Insulation Tester Price in Bangladesh
Sanwa MG 1000 Digital Insulation Tester Price in Bangladesh is a high quality electrical testing instrument designed for precise insulation resistance measurement in power systems, electrical installations, and industrial equipment. Sanwa MG 1000 Digital Insulation Tester Price in Bangladesh is widely used by electricians and engineers who require accurate, safe, and reliable testing solutions for maintenance and troubleshooting work.
This digital insulation tester is engineered to measure insulation resistance of cables, motors, transformers, and electrical panels with high accuracy. It supports multiple test voltage levels such as 250V, 500V, and 1000V, allowing users to select the appropriate setting based on different equipment requirements and safety standards.
The device features a clear digital display with backlight, making it easy to read results even in low light working environments. It also includes a bar graph display that simulates analog meter behavior, helping users observe measurement trends more effectively during testing.
Sanwa MG 1000 is designed with safety in mind, featuring auto discharge functionality that safely releases stored electrical charge after testing. It also includes live circuit detection to prevent accidental testing on energized lines, improving user safety during operation.
The instrument is built with a rugged and durable body, making it suitable for both field and industrial use. Its compact and portable design allows technicians to carry it easily and perform on-site testing without difficulty. The device also offers data hold and auto power saving features for improved efficiency during long working hours.
Overall, this insulation tester is a dependable solution for professionals who need accurate measurement, strong safety features, and long lasting performance. It is an essential tool for ensuring electrical system reliability and preventing insulation related failures in industrial and commercial applications.
Key Features: Sanwa MD 1000 Digital Insulation Tester
- Test voltage DC1000V/500V/250V
- Bargraph just like analog meter
- Short circuit current up to 2mA
- Large display with backlight
- Auto discharge function
- Data hold(Auto)
- Auto power save: Power save about 10 minutes after the last operation
Specifications
Specifications: Sanwa MG 1000 Digital Insulation Tester
| Function | Measuring range | Best accuracy | Resolution |
|---|---|---|---|
| MΩ | 4M/40M/400M/4000MΩ | ±(3%+4) | 0.001MΩ |
| Rated voltage | 250/500/1000V | ||
| ACV/DCV | 600V(AC/DC Automatic detection) | ±(3%+2) | 1V |
| Ω（Continuity) | 4000Ω(Buzzer and ALARM indicator) | ±(3%+3) | 1Ω |
| Ω | 40Ω | ±(3%+10) | 0.01Ω |
| Rated current | 1.0～1.2mA |
| Short-circuit current | 2mA or less |
| Live circuit detection | At 30V AC/DC or more, inhibits test, buzzer sounds and ALARM indicator lights up |
| Battery | LR6(AA alkaline battery)1.5V×6 |
| Size/Mass | H170×W142×D57mm/Approx. 600g |
| Safety standard | IEC61010 CAT.Ⅲ 600V |
