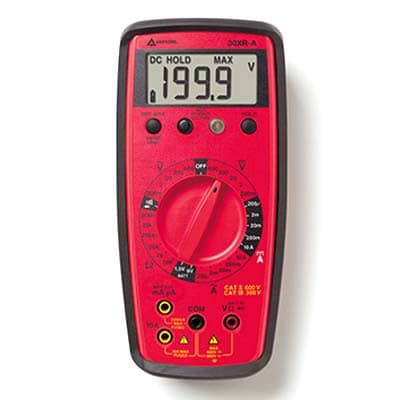

Amprobe 30XR-A Auto-Ranging Digital Multimeter

Auto‑ranging multimeter with versatile measurement functions for professional electrical work

Product Overview

Amprobe 30XR-A Auto‑Ranging Digital Multimeter

Amprobe 30XR-A Auto‑Ranging Digital Multimeter Price in Bangladesh is a reliable and user‑friendly tool for electricians, technicians, and maintenance professionals who need accurate measurements in a compact and efficient device. This multimeter is designed with auto‑ranging capability, which automatically selects the correct measurement range for each electrical parameter, saving time and reducing the chance of incorrect settings during testing. Its thoughtful design and versatile measurement functions make it suitable for residential, commercial, and light industrial electrical applications.

The Amprobe 30XR-A offers a wide range of essential measurement functions including AC and DC voltage, DC current, resistance, capacitance, frequency, and continuity testing. It also includes diode testing for evaluating electronic components and circuits. The large digital display ensures easy and clear readability of measurement results, helping professionals work more efficiently during troubleshooting and maintenance tasks. The auto‑ranging feature provides seamless operation for both experienced technicians and users new to electrical testing.

Durability and ease of use are standout features of this multimeter. Its ergonomic design and protective casing ensure that the device can withstand regular use in various work environments. The intuitive user interface and clearly labeled controls make it simple to switch between different testing modes. Built‑in protective features help safeguard the meter and the user during testing, providing peace of mind when working with live circuits.

Amprobe 30XR-A Auto‑Ranging Digital Multimeter Price in Bangladesh combines reliable performance with user‑friendly operation, making it an excellent choice for routine electrical testing and troubleshooting. Whether you are performing voltage checks, diagnosing component issues, or testing continuity in wiring systems, this multimeter delivers consistent and dependable results.

Investing in Amprobe 30XR-A Auto‑Ranging Digital Multimeter Price in Bangladesh ensures that professionals have a versatile and accurate tool in their toolkit. Its auto‑ranging functionality, combined with essential measurement features and a durable build, makes it a valuable addition for anyone involved in electrical diagnostics and maintenance tasks.

Key Features: Amprobe 30XR-A Auto-Ranging Digital Multimeter with VolTect trade, Non-Contact Voltage Detection

Non-contact voltage detector
Separate door for easy battery and fuse access
Manual ranging; display: 3-1/2 digit LCD, 1999 counts
Display update rate: 2.5/sec, nominal
Power Battery: 9 V NEDA 1604, JIS 006P, IEC 6F22
Operating temperature: 0 °C to 45 °C at < 70 % R.H.
Storage temperature: -20 °C to 60 °C, 0 to 80 % R.H. with the battery removed from the meter
Low battery indication
Overrange indication
Min/max and data Hold

Specifications

Specifications: Amprobe 30XR-A Auto Ranging Digital Multimeter with VolTect trade, Non-Contact Voltage Detection

FEATURE	30XR-A
DC Voltage	200.0 mV 2.000 V, 20.00 V, 200.0 V, 500 V
AC Voltage	200.0 mV 2.000 V, 20.00 V, 200.0 V, 500 V
DC Current	200.0 µA 2.000 mA, 20.00 mA, 200.0 mA, 10 A
AC Current	200.0 µA 2.000 mA, 20.00 mA, 200.0 mA, 10 A
Resistance	200.0 O, 2.000 kO, 20.00 kO, 200.0 kO, 2.000 MO, 20.00 MO
Continuity	•
Diode	•
VolTect™ Non-Contact Voltage Detection	•
Capacitance	–
Frequency	–
Temperature	–
Duty cycle	–
Logic test	–
Inductance	–
dBm	–

Specifications
DC Voltage ranges:	200 mV, 2 V, 20 V, 200 V, 600 V
DC Voltage accuracy:	all ranges: ± (1 % rdg + 1 dgt)
DC Voltage resolution:	100 µV
DC Voltage input impedance:	10 MO
AC Voltage (45 Hz to 500 Hz) ranges:	200 mV, 2 V, 20 V, 200 V, 600 V
AC Voltage (45 Hz to 500 Hz) accuracy:	all ranges: ± (1.5 % rdg + 4 dgts)
AC Voltage (45 Hz to 500 Hz) resolution:	100 µV
AC Voltage (45 Hz to 500 Hz) input impedance:	10 MO
DC Current ranges:	200 µA, 2 mA, 20 mA, 200 mA, 10 A
DC Current accuracy:	200 µA to 200 mA ranges: ± (1.5 % rdg + 1 dgt)
DC Current accuracy:	10 A range: ± (2.0 % rdg + 3 dgts)
DC Current resolution:	0.1 µA
DC Current voltage burden (max):	200 µA range: 1 mV/µA
DC Current voltage burden (max):	2 mA range: 100 mV/1mA
DC Current voltage burden (max):	20 mA range: 13 mV/1 mA
DC Current voltage burden (max):	200 mA range: 4.6 mV/1 mA
DC Current voltage burden (max):	10A range: 40 mV/1 A
AC Current (45 Hz to 500 Hz) ranges:	200 µA, 2 mA, 20 mA, 200 mA, 10 A
AC Current (45 Hz to 500 Hz) accuracy:	200 µA to 200 mA ranges: ± (2.0 % rdg + 4 dgts)
AC Current (45 Hz to 500 Hz) accuracy:	10A range: ± (2.5 % rdg + 4 dgts)
AC Current resolution:	0.1 µA
AC Current voltage burden:	See DC Current
Non-contact voltage detector (NCV) AC volts:	70 to 600 V ac
Non-contact voltage detector (NCV):	Red LED and Audible Indicator
