Amprobe 33XR-A Digital Multimeter with Temperature

Professional digital multimeter with temperature measurement for advanced electrical and HVAC diagnostics

Product Overview

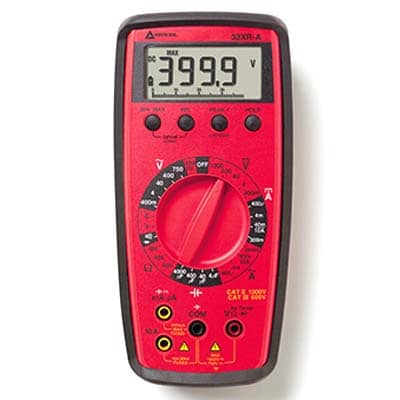

Amprobe 33XR-A Digital Multimeter

Amprobe 33XR-A Digital Multimeter with Temperature Price in Bangladesh is a versatile and dependable tool for electricians, HVAC technicians, and maintenance professionals who need accurate electrical and temperature measurements. This multimeter combines auto‑ranging capability with temperature testing, making it suitable for both electrical troubleshooting and environmental diagnostics. Its robust functionality supports a wide range of residential, commercial, and industrial applications.

The Amprobe 33XR-A offers essential electrical measurement functions including AC and DC voltage, DC current, resistance, frequency, and capacitance testing. In addition to basic electrical measurements, the device includes a built‑in temperature measurement feature which enables technicians to monitor temperature changes in HVAC systems, motors, and electrical panels. This dual functionality makes the multimeter especially useful for diagnosing heating, cooling, and power issues with accuracy and efficiency.

Auto‑ranging operation is one of the key advantages of this model, as it automatically selects the appropriate measurement range for each test. This simplifies usage and reduces the chances of incorrect settings, allowing both experienced professionals and beginners to work confidently with the meter. The clear digital display presents measurement readings in a format that is easy to read even in low light conditions, enhancing overall usability during fieldwork.

Durability and user comfort are also priorities of the Amprobe 33XR-A. Its ergonomic design makes the tool easy to hold and operate during extended periods of testing. The rugged housing protects the meter from accidental impacts and regular wear, ensuring long‑lasting performance. Built‑in safety features provide protection during use, giving technicians peace of mind when working with live electrical systems.

Amprobe 33XR-A Digital Multimeter with Temperature Price in Bangladesh offers excellent value with its combination of accurate electrical testing, temperature measurement capability, and user‑friendly design. Whether you are performing routine maintenance, troubleshooting HVAC and electrical systems, or checking component performance, this multimeter delivers reliable results and dependable performance. Its versatile functions and durable build make it a valuable addition to any professional technician’s toolkit.

Key Features: Amprobe 33XR-A Digital Multimeter with Temperature

Min/max, relative, peak and data hold
Auto power off to save battery life
Separate door for easy battery and fuse access
Magne-Grip™ Holster with magnetic hanging strap
Display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
Display update rate: 2/sec, nominal
Analog bar graph
Overrange indication
Operating temperature: 0 °C to 45 °C at < 70 % R.H.
Storage temperature: -20 °C to 60 °C,
Input warning tone when test leads are in wrong jack

Specifications

Specifications: Amprobe 33XR-A Digital Multimeter with Temperature

FEATURE	33XR-A
DC Voltage	400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
AC Voltage	400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
DC Current	400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
AC Current	400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
Resistance	400.0 O, 40.00 kO, 4.000 MO
Continuity	•
Diode	•
VolTect™ Non-Contact Voltage Detection	–
Capacitance	4.000 µF, 40.00 µF, 400.0 µF, 4000 µF
Frequency	4.000 kHz, 40.00 kHz, 400.0 kHz, 1 MHz
Temperature	1832 °F (1000 °C)
Duty cycle	–
Logic test	–
Inductance	–
dBm	–

Specifications
DC Voltage ranges:	400 mV, 4 V, 40 V, 400 V, 1000 V
DC Voltage accuracy:	all ranges: ± (0.7 % rdg + 1 dgt)
DC Voltage resolution:	100 µV
DC Voltage input impedance:	10 MO
AC Voltage (45 Hz to 500 Hz) ranges:	400 mV, 4 V, 40 V, 400 V, 750 V
AC Voltage (45 Hz to 500 Hz) accuracy:	4 V Range, 200 Hz to 500 Hz: ± (2.0 % rdg + 4 dgts)
AC Voltage (45 Hz to 500 Hz) accuracy:	All other ranges: ± (1.5 % rdg + 4 dgts)
AC Voltage (45 Hz to 500 Hz) resolution:	100 µV
AC Voltage (45 Hz to 500 Hz) input impedance:	10 MO
DC Current ranges:	400 µA, 4 mA, 40 mA, 300 mA, 10 A
DC Current accuracy:	400 µA to 300 mA ranges: ± (1.0 % rdg + 1 dgt)
DC Current accuracy:	10 A range: ± (2.0 % rdg + 3 dgts)
DC Current resolution:	0.1 µA
DC Current voltage burden:	400 µA range: 1 mV/µA, 4 mA range: 100 mV/1 mA, 40 mA range: 12 mV/1 mA,
DC Current voltage burden:	300 mA range: 4 mV/1 mA, 10 A range: 100 mV/1 A
AC Current (45 Hz to 500 Hz) ranges:	400 µA, 4 mA, 40 mA, 300 mA, 10 A
AC Current (45 Hz to 500 Hz) accuracy:	400 µA to 300 mA ranges: ± (1.5 % rdg + 4 dgts)
AC Current (45 Hz to 500 Hz) accuracy:	10 A range: ± (2.5 % rdg + 4 dgts)
AC Current resolution:	0.1 µA
AC Current voltage burden:	See DC Current
Resistance ranges:	400 O 40 kO 4 MO
Resistance accuracy:	400 Oand 40 kO ranges: ± (1.0 % rdg + 4 dgts)
Resistance accuracy:	4 MO range: ± (1.2 % rdg + 4 dgts)
Resistance resolution:	100 mO
