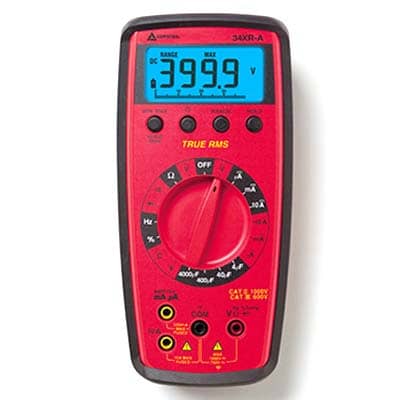

Amprobe 34XR-A True-rms Digital Multimeter

Professional True‑RMS multimeter with reliable accuracy for advanced electrical diagnostics

Product Overview

Amprobe 34XR-A True‑RMS Digital Multimeter

Amprobe 34XR-A True‑RMS Digital Multimeter Price in Bangladesh is a reliable and versatile tool designed for electricians, technicians, and maintenance professionals who need precise measurements in various electrical environments. This True‑RMS multimeter delivers accurate readings for both linear and non‑linear AC signals, making it ideal for modern electrical systems where waveform distortion is common. Its robust performance and essential measurement capabilities make it suitable for residential, commercial, and industrial applications.

The Amprobe 34XR-A provides comprehensive measurement functions including AC and DC voltage, DC current, resistance, capacitance, and frequency testing. It also supports continuity checks and diode testing, allowing users to quickly troubleshoot electrical circuits and components. True‑RMS accuracy ensures dependable performance when measuring complex loads, motors, lighting systems, and electronic devices that produce distorted waveforms.

One of the key advantages of this model is its user‑friendly auto‑ranging feature, which automatically detects and selects the appropriate measurement range for each test. This simplifies operation and helps reduce the chance of incorrect readings, making it easier for both experienced professionals and beginners to use the multimeter effectively. The clear digital display presents measurement results in an easy‑to‑read format, allowing technicians to interpret data quickly during troubleshooting and maintenance tasks.

Durability is a core strength of the Amprobe 34XR-A. Its rugged construction and protective casing are designed to withstand everyday use in demanding work environments, including job sites and industrial facilities. The multimeter’s ergonomic design ensures comfortable handling, while built‑in protective features help safeguard users and the device during high‑voltage testing. These elements combine to deliver a tool that professionals can rely on for consistent performance over time.

Amprobe 34XR-A True‑RMS Digital Multimeter Price in Bangladesh offers excellent value by combining accurate True‑RMS measurement, versatile test functions, and durable build quality in a single package. Whether you are diagnosing complex electrical faults, performing routine maintenance, or testing power systems, this multimeter provides dependable results that technicians can trust. Its professional‑grade performance makes it a valuable addition to any electrical toolkit.

Key Features: Amprobe 34XR-A True-rms Digital Multimeter with Temperature

Autoranging; display: 3-3/4 digit LCD, 3999 counts with 41-segment analog bar graph
Display update rate: 2/sec, nominal
Operating temperature: 0 °C to 45 °C at < 70 % R.H
True-rms digital multimeter with temperature and backlight
Overrange indication
Auto power off to save battery life
Min/max, data hold and range lock
Separate door for easy battery and fuse access
Magne-Grip™ Holster with magnetic hanging strap

Specifications

Specifications: Amprobe 34XR-A True-rms Digital Multimeter with Temperature

FEATURE	34XR-A
DC Voltage	400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
AC Voltage	400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
DC Current	400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
AC Current	400.0 µA, 4.000 mA, 40.00 mA, 300.0 mA, 10 A
Resistance	400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO. 40.00 MO
Continuity	•
Diode	•
VolTect™ Non-Contact Voltage Detection	–
Capacitance	4.000 µF, 40.00 µF, 400.0 µF, 4000 µF
Frequency	4.000 kHz, 40.00 kHz, 400.0 kHz, 1 MHz
Temperature	1832 °F (1000 °C)
Duty cycle	0.0 % → 90.0 %
Logic test	–
Inductance	–
dBm	–

Specifications
DC Voltage ranges:	400 mV, 4 V, 40 V, 400 V, 1000 V
DC Voltage accuracy:	all ranges: ± (0.5 % rdg + 1 dgt)
DC Voltage resolution:	100 µV
AC Voltage (45 Hz to 2 kHz) True-rms ranges:	400 mV, 4 V, 40 V, 400 V, 750 V
AC Voltage (45 Hz to 2 kHz) True-rms accuracy:	400 mV range, 45 to 100 Hz: ± (1.2 % rdg + 8 dgts)
AC Voltage (45 Hz to 2 kHz) True-rms accuracy:	750 V range: 45 to 1 kHz: ± (2.0 % rdg + 8 dgts)
AC Voltage (45 Hz to 2 kHz) True RMS accuracy:	All other ranges, 45 to 500 Hz: ± (1.2 % rdg + 8 dgts)
AC Voltage (45 Hz to 2 kHz) True-rms accuracy:	All other ranges, 500 to 2 kHz: ± (2.0 % rdg + 8 dgts)
AC Voltage (45 Hz to 2 kHz) True-rms resolution:	100 µV
DC Current ranges:	400 µA, 4 mA, 40 mA, 300 mA, 10 A
DC Current accuracy:	400 µA to 300 mA ranges: ± (1.0 % rdg + 1 dgt)
DC Current accuracy:	10 A range: ± (2.0 % rdg + 3 dgts)
DC Current resolution:	0.1 µA
DC Current voltage burden:	400 µA range: 1 mV/µA, 4 mA range: 100 mV/1 mA, 40 mA range: 12 mV/1 mA,
DC Current voltage burden:	400 µA, 4 mA, 40 mA, 300 mA, 10 A
AC Current (45 Hz to 1 kHz) True-rms ranges:	400 µA, 4 mA, 40 mA, 300 mA, 10 A
AC Current (45 Hz to 1 kHz) True-rms accuracy:	400 µA to 300 mA ranges: ± (1.5 % rdg + 8 dgts)
AC Current (45 Hz to 1 kHz) True-rms accuracy:	10 A range: ± (2.5 % rdg + 10 dgts)
AC Current (45 Hz to 1 kHz) True-rms resolution:	0.1 µA
Resistance ranges:	400 mO 4 kmO 40 kmO 400 kmO 4 MmO 40 MmO
Resistance accuracy:	400, 4 k, 40 k, 400 k, 4 MmO ranges: ± (1.0 % rdg + 4 dgts)
Resistance accuracy:	40 MmO range: ± (2.0 % rdg + 5 dgts)
Resistance resolution:	100 mmO
Continuity audible indication:	< 35 mO
