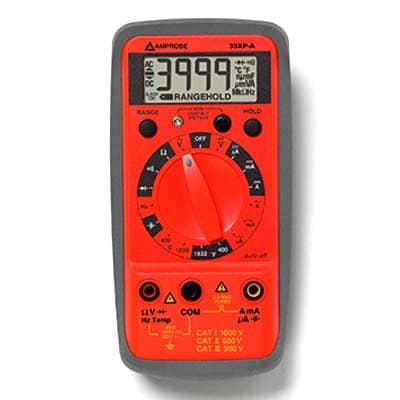

Amprobe 35XP-A Digital Multimeter with Temperature

Advanced professional multimeter with temperature measurement for HVAC and electrical diagnostics.

Product Overview

Amprobe 35XP-A Digital Multimeter with Temperature

Amprobe 35XP-A Digital Multimeter with Temperature Price in Bangladesh is an important consideration for technicians, engineers, and maintenance professionals who require a versatile and reliable digital multimeter for electrical and HVAC applications. This compact handheld device is designed to deliver accurate electrical measurements while also offering temperature testing capabilities, making it suitable for plant maintenance, industrial troubleshooting, and HVAC system diagnostics.

The Amprobe 35XP-A offers a wide range of measurement functions including AC and DC voltage up to 600V, AC/DC current measurement up to 2A, resistance testing up to 40 MΩ, capacitance measurement, and frequency measurement up to 1 MHz. These features allow technicians to diagnose electrical circuits, motors, sensors, and electronic components efficiently. The multimeter also supports diode testing and continuity testing, helping users quickly check electrical connections and identify faults in wiring systems.

One of the key features of this model is its temperature measurement capability up to 1000°C using a Type-K thermocouple probe. This function is extremely useful for HVAC engineers who need to monitor heating systems, compressors, and other temperature-sensitive equipment. The device also includes VolTect non-contact voltage detection, which allows users to identify live voltage safely without touching exposed wires.

The multimeter is equipped with a clear LCD display with around 4000 counts, providing precise and easy-to-read measurement results. Additional features such as data hold, auto power off, and a durable protective holster improve usability and reliability during field work. The meter also supports capacitance testing for motor run and start capacitors, which is especially useful for HVAC and industrial maintenance tasks.

Amprobe 35XP-A Digital Multimeter with Temperature Price in Bangladesh generally varies depending on supplier availability, warranty, and import conditions. Because of its advanced measurement capabilities, temperature testing function, and professional-grade performance, this multimeter is widely used by electricians, engineers, and HVAC technicians who require accurate and dependable testing equipment for daily electrical maintenance.

Key Features: Amprobe 35XP-A Digital Multimeter with Temperature

Temperature measurement capability to 1000 °C/1832 °F (type-K thermocouple included)
600 V AC/600 V DC – highest voltage rating in this class of meter
Capacitance for motor run/start test
0.1 μA resolution for flame sensor testing
Frequency to 1 MHz
Resistance to 40 MΩ
Data hold freezes display
Magne-Grip™ Holster
VolTect™ non-contact voltage detector
Low battery indication

Specifications

Specifications: Amprobe 35XP-A Digital Multimeter with Temperature

FEATURE	35XP-A
DC Voltage	400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
AC Voltage	400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
Current AC/DC	400.0 µA, 4.000 µA, 40.00 mA, 400.0 mA, 2 A
Resistance	40.00 kΩ, 400.0 kΩ, 4.000 MΩ. 40.00 MΩ
Continuity beeper	✓
VolTect™ Non-Contact Voltage Detection	70 VAC → 600 VAC (50 Hz → 60 Hz)
Capacitance	4.000 nF, 40.00 nF, 4.000 µF, 40.00 µF, 400.0 µF, 4.000 mF
Frequency	4,000 kHz, 40.00 kHz, 400,0 kHz, 1 MHz
Temperature	-4 °F → 1832 °F (-20 °C → 1000 °C)
Logic test	–
Battery test	–

Specifications
DC Volts range:	400 mV, 4 V, 40 V, 400 V, 600 V Accuracy: ± (0.5 % rdg + 1 dgts)
AC Volts (45 Hz to 500 Hz) range:	400 mV (45 Hz to 100 Hz) 4 V, 40 V, 400 V, 600 V (45 Hz to 500Hz) Accuracy: ± (1.5 % rdg + 5 dgts)
Voltage resolution:	100 µV
Input impedance:	400 mV: >100 MΩ ; 4 V: 10 MΩ ; 40 V to 600 V: 9.1 MΩ
Overload protection:	600 V dc or 60 V ac rms
DC Current range:	400 µA, 4000 µA, 40 mA, 400 mA ± (1.0 % rdg + 2 dgt)
DC Current range:	2 A ± (2.0 % rdg + 3 dgts)
AC Current (45 Hz to 500 Hz) range:	400 µA, 4000 µA, 40 mA, 400 mA ± (1.5 % rdg + 5 dgts)
AC Current (45 Hz to 500 Hz) range:	2 A ± (2.5 % rdg + 5 dgts)
Current resolution:	0.1 µA
Input protection:	2 A/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on A input
Burden voltage:	500 mV max. (2 V max. on 4 mA, 400 mA ranges)
Resistance:	400 Ω , 4 kΩ , 40 kΩ , 400 kΩ , 4 MΩ ± (1.0 % rdg + 4 dgts)
Resistance:	40 MΩ ± (2.0 % rdg + 5 dgts)
Resistance resolution:	100 mΩ
Open circuit voltage:	-0.45 V dc typical, (-1.2 V dc on 400 Ω range)
Overload protection:	600 V dc or 600 V ac rms
