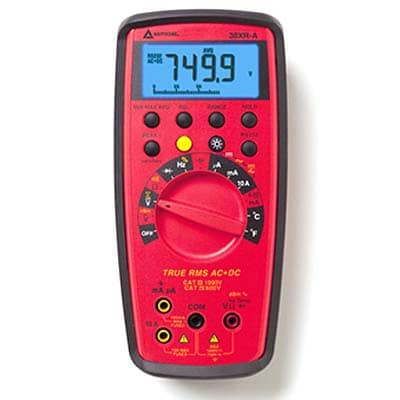

Amprobe 38XR-A True-rms Digital Multimeter

Reliable True‑RMS multimeter for accurate electrical diagnostics and maintenance

Product Overview

Amprobe 38XR-A True‑RMS Digital Multimeter

Amprobe 38XR-A True‑RMS Digital Multimeter Price in Bangladesh is a professional‑grade tool for electricians, technicians, and maintenance engineers who require precise and dependable electrical measurements. This True‑RMS multimeter is designed to deliver accurate readings for both linear and non‑linear AC signals, making it ideal for complex electrical systems in residential, commercial, and industrial settings. Its robust performance and wide measurement capabilities make it suitable for diverse electrical diagnostics and troubleshooting tasks.

The Amprobe 38XR-A provides essential measurement functions including AC and DC voltage, DC current, resistance, capacitance, and frequency testing. The multimeter also supports continuity checks and diode testing, allowing professionals to quickly diagnose wiring issues, component failures, and circuit performance. True‑RMS accuracy ensures reliable results even when testing distorted or non‑sinusoidal waveforms, which are common in modern electrical environments with electronic loads and variable frequency drives.

One of the key advantages of this model is its intuitive auto‑ranging capability, which automatically selects the correct measurement range for each task. This simplifies operation, reduces the chance of user error, and allows both experienced professionals and novice users to work confidently with the device. The clear digital display shows measurement values in an easy‑to‑read format, helping technicians interpret results quickly and accurately during fieldwork or maintenance procedures.

Durability and usability are also notable features of the Amprobe 38XR-A. Its rugged housing and protective design ensure that the multimeter withstands regular use in demanding conditions. The ergonomic build allows comfortable handling during extended testing sessions, while built‑in safety protections offer added peace of mind when working with live electrical systems. This combination of durability and user comfort makes the device a dependable choice for everyday electrical work.

Amprobe 38XR-A True‑RMS Digital Multimeter Price in Bangladesh offers excellent value by combining advanced True‑RMS accuracy, versatile measurement functions, and a durable build quality. Whether you are performing routine maintenance, diagnosing complex faults, or verifying electrical parameters, this multimeter provides consistent and trustworthy results. Its professional performance and reliable operation make it a valuable addition to any electrician’s toolkit.

Key Features: Amprobe 38XR-A True-rms Digital Multimeter with Temperature

Backlight, True-rms with with optical PC interface
Frequency to 10 MHz,capacitance to 400 uF, temperature to 2372 °F
Bright blue backlight
10 Amps AC/DC, fully safety fused
Continuity beeper
Min/max, average, relative, peak, and data hold
Auto power off to save battery life
Separate door for easy battery and fuse access
Magne-Grip™ Holster with magnetic hanging strap
Autoranging; display: 4-3/4 digit LCD, 10,000 counts with 41-segment analog bar graph
Display update rate: 2/sec, nominal
Power battery: 9 V NEDA 1604, JIS 006P, IEC 6F22
Operating temperature: 0 °C to 45 °C at < 70 % R.H
Input lead warning

Specifications

Specifications: Amprobe 38XR-A True-rms Digital Multimeter with Temperature

FEATURE	38XR-A
DC Voltage	1.000 mV, 10.00 V, 100.0 V, 1000 V
AC Voltage	1.000 mV, 10.00 V, 100.0 V, 1000 V
DC Current	100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
AC Current	100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
Resistance	1000.0 O, 10.000 kO, 100.00 kO, 1000.0 kO, 10.00 MO , 40.00 MO
Continuity	•
Diode	•
VolTect™ Non-Contact Voltage Detection	–
Capacitance	40.00 nF. 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF
Frequency	100.00 Hz, 1.0000 kHz, 10.000 kHz, 100.00 kHz, 1.0000 MHz, 10.000 MHz
Temperature	2372 °F (1300 °C)
Duty cycle	0.00 % → 90.0 %
Logic test	–
Inductance	–
dBm	-13 dBm → + 50 dBm

Specifications
DC Voltage ranges:	1000 mV, 10 V, 100 V, 1000 V
DC Voltage accuracy:	all ranges ± (0.25 % rdg + 5 dgt)
DC Voltage resolution:	100 µV
AC Voltage (45 Hz to 2 kHz) True-rms ranges:	1000 mV, 10 V, 100 V, 750 V
AC Voltage (45 Hz to 2 kHz) True-rms accuracy:	750 V range: 45 to 1 kHz: ± (2.0 % rdg + 10 dgts)
AC Voltage (45 Hz to 2 kHz) True-rms accuracy:	All other ranges, 45 to 500 Hz: ± (1.2 % rdg + 10 dgts)
AC Voltage (45 Hz to 2 kHz) True-rms accuracy:	All other ranges, 500 to 2 kHz: ± (2.0 % rdg + 10 dgts)
AC coupled:	True RMS specified from 5 % to 100 % of range
AC + DC Voltage (45 Hz to 2 kHz):	1000 mV, 10 V, 100 V, 750 V
DC Current ranges:	100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
DC Current accuracy:	100 µA range: ± (0.5 % rdg + 10 dgt)
DC Current accuracy:	1000 uA to 400 mA ranges: ± (0.5 % rdg + 5 dgts)
DC Current accuracy:	10 A range: ± (1.5 % rdg + 10 dgt)
DC Current resolution:	0.01 µA
AC Current (True-rms) ( AC + DC) (45 Hz – 1kHz) ranges:	100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
AC Current (True-rms) ( AC + DC) (45 Hz – 1kHz) accuracy:	100 µA to 100 mA ranges: ± (1.5 % rdg + 10 dgts)
AC Current (True-rms) ( AC + DC) (45 Hz – 1kHz) accuracy:	400 mA range: ± (2.0 % rdg + 10 dgts)
AC Current (True-rms) ( AC + DC) (45 Hz – 1kHz) accuracy:	10 A range: ± (2.5 % rdg + 10 dgts)
AC Current (45 Hz to 1 kHz) True-rms resolution:	0.01 µA
Resistance ranges:	1000 O 10 kO 100 kO 1000 kO 10 MO 40 MO
Resistance accuracy:	1000 O to 1000 kO ranges: ± (0.5 % rdg + 8 dgts)
Resistance accuracy:	10 MO range: ± (1.0 % rdg + 10 dgts)
Resistance accuracy:	40 MO range: ± (2.0 % rdg + 10 dgts)
