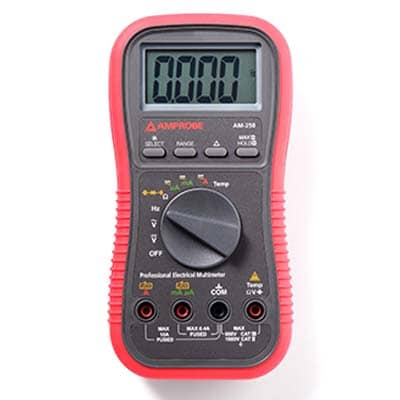

Amprobe AM-250 Industrial True-rms Digital Multimeter
Professional industrial multimeter with True-RMS accuracy for precise electrical diagnostics
Product Overview
Amprobe AM-250 Industrial True-rms Digital Multimeter
Amprobe AM-250 Industrial True-RMS Digital Multimeter Price in Bangladesh is a reliable and robust multimeter designed for electricians, engineers, and industrial maintenance professionals who require accurate and durable electrical testing equipment. This industrial-grade multimeter provides precise True-RMS measurements, ensuring accurate readings for both linear and non-linear AC signals, which is critical in complex industrial electrical systems.
The AM-250 offers a comprehensive range of measurement functions including AC and DC voltage, AC and DC current, resistance, capacitance, frequency, and continuity testing. It also includes diode testing, allowing technicians to quickly evaluate circuit components and troubleshoot electrical faults effectively. The multimeter’s high measurement accuracy and wide range make it suitable for both low- and high-voltage applications, making it a versatile tool for industrial environments.
Durability is a key feature of the Amprobe AM-250. Its rugged housing is designed to withstand tough work conditions, including drops, impacts, and exposure to industrial environments. The large digital display provides clear readings even in low-light conditions, while intuitive controls allow for efficient operation during field testing. Built-in protective features ensure safe use when measuring high-voltage systems, protecting both the user and the instrument.
The device also includes advanced functions such as data hold, min/max recording, and auto-ranging capabilities. These features simplify measurement tasks, reduce errors, and improve efficiency during troubleshooting and maintenance work. The compact design and lightweight form factor make it easy for professionals to carry the AM-250 across different job sites.
Amprobe AM-250 Industrial True-RMS Digital Multimeter Price in Bangladesh represents a reliable investment for professionals who need a precise, durable, and versatile multimeter for daily industrial and electrical work. Its True-RMS accuracy, wide measurement range, and robust construction make it a valuable addition to any industrial electrician or technician’s toolkit.
Key Features: Amprobe AM-250 Industrial True-rms Digital Multimeter
- 13 Features
- Measures AC/DC voltage up to 1000V, current, resistance, frequency, capacitance and temperature
- Audible continuity
- Diode test
- Auto and manual ranging
- Relative zero mode
- Data hold
- Peak hold (30ms response time)
- Backlight display
- Large, easy to read LCD display
- Beep-jack audible warning against improper connection
- Auto power off
Specifications
Specifications: Amprobe AM-250 Industrial True-rms Digital Multimeter
| FEATURE | AM-250 | AM-270 |
| AC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V | 50.00 mV, 500.0 mV, 5.000 V, 50.00 V, 500.0 V, 1000 V |
| DC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V | 50.00 mV, 500.0 mV 5.000 V, 50.00 V, 500.0 V, 1000V |
| Resistance | 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO 4.000 MO, 40.00 MO | 50.00 O, 500.0 O, 5.000 kO, 50.00 kO, 500.0 kO, 5.000 MO, 50.00 MO |
| AC/DC Current | 40.00 µA, 400.0 µA, 400.0 mA, 4000 mA, 4.000 A, 10.00 A | 50.00 µA, 500.0 µA, 500.0 mA, 5000 mA, 5.000 A, 10.00 A |
| Frequency | 5.000 Hz, 50.00 Hz, 500.0 Hz, 5.000 kHz, 50.00 kHz, 500.0 kHz, 1.000 MHz | 5Hz → 125 kHz for all setups except: 5Hz → 1kHz for 500V and 1000V ranges 5 Hz → 20 kHz for 50 V range |
| Capacitance | 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF , 3000 µF | 50.00 nF, 500.0 nF 5.000 µF, 50.00 µF, 500.0 µF, 9999 µF |
| Temperature | -4 °F → 572 °F (-20 °C → 300 °C) | -58 °F → 1832 °F (-50 °C → 1000 °C) |
| Data recording | – | Records peak, max, min, max-min |
| Relative zero mode | – | • |
| Specifications | |
| General specifications: | 3-3/4 digits 4000 counts LCD display |
| Polarity: | Automatic |
| Update rate: | 3 per second nominal |
| Operating temperature: | 0°C to 40°C (32°F to 104°F) |
| Power supply: | 1.5V AAA Size (NEDA 24A or IEC LR03) battery X 2 |
| Power consumption: | 3.2 mA |
| Special features: | 25ms Max Hold; Data Hold; Relative zero mode; Beep-jack™ input warning; Back-lighted display |
| Included accessories: | Test leads (pair), Banana plug K-type thermocouple, batteries installed, user’s manual |
