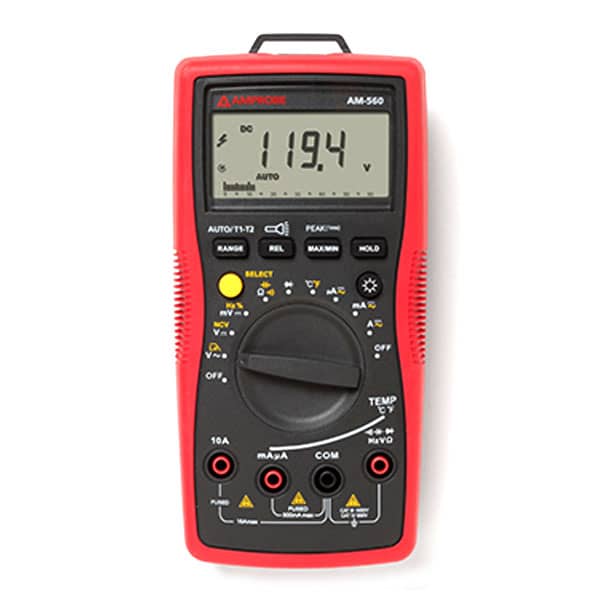

Amprobe AM-560 Advanced HVAC Multimeter

Amprobe AM-560 Advanced HVAC Multimeter Price in Bangladesh is a highly sought after tool for HVAC technicians, electricians, and industrial professionals who need accurate and efficient measurement capabilities for both electrical and temperature testing. This multimeter is specifically designed to meet the demanding needs of heating, ventilation, and air conditioning systems, offering true RMS accuracy that ensures precise readings even in complex electrical environments. Its versatile functionality makes it suitable for residential, commercial, and industrial HVAC applications.

The Amprobe AM-560 comes equipped with a wide range of measurement features including AC DC voltage, current, resistance, frequency, and capacitance. In addition to electrical measurements, it offers dual thermocouple inputs that allow simultaneous temperature measurements. This dual temperature feature is especially useful for HVAC professionals who need to measure temperature differences across components, diagnose heating and cooling issues quickly, and verify system performance during maintenance checks.

One of the standout features of the Amprobe AM-560 is its ability to measure microamps for flame sensor testing, a crucial function for technicians working with gas furnaces and combustion systems. The multimeter also includes low pass filter capabilities for accurate readings on variable frequency drive systems, helping to eliminate false readings caused by electrical noise. These advanced features make it a complete solution for troubleshooting HVAC controls, motor operations, and power quality issues.

Durability and ease of use are key strengths of the Amprobe AM-560. Its rugged construction and ergonomic design make it suitable for daily field use, while the intuitive interface and large, easy‑to‑read display help professionals complete jobs efficiently and with confidence. Additional functions like data hold, min max recording, and relative measurement mode provide technicians with tools to analyze and compare electrical and temperature data effectively.

Amprobe AM-560 Advanced HVAC Multimeter Price in Bangladesh offers excellent value by combining precision, versatility, and durability in a single device. Whether you are performing routine maintenance, diagnosing complex HVAC system faults, or ensuring compliance with safety and performance standards, this multimeter supports reliable and efficient results. Its professional grade features make it a smart investment for anyone seeking comprehensive electrical and HVAC diagnostics.

Key Features: Amprobe AM-560 Advanced HVAC Multimeter

Measures AC/DC voltage up to 1000V, AC/DC current, resistance, frequency, capacitance, temperature, and duty cycle
Dual thermocouple takes simultaneous temperature readings on low and high side of an HVAC system
Low pass filter accurately measures voltage on variable frequency drives
Non-contact voltage detection enhances safety
Audible continuity quickly identifies shorts and opens
Diode test to verify diode polarity
Data hold freezes the reading on the display for further analysis
Peak hold (crest) captures and holds the peak value of a voltage or current surge
MIN/MAX recording records min/max measurements over time to show voltage fluctuations
Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
CAT IV 600V/CAT III 1000V safety rated for high voltage environments

Specifications

Specifications: Amprobe AM-560 Advanced HVAC Multimeter

FEATURE	AM-560	Best Accuracy
AC Voltage	6.000 V, 60.00 V, 600.0 V, 1000 V	+/- (1.0 % rdg + 3 LSD) @ 45 Hz to 400 Hz, 0 V to 600 V
DC Voltage	600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V	+/- (0.5% rdg + 2 LSD) @ 6 V to 600 V ranges
AC Current	600.0 μA, 6000 μA, 60.00 mA, 500.0 mA, 10.00 A	±(1.2% Rdg + 5 LSD) @ 600 μA to 6000 μA ranges, 45 Hz to 400 Hz
DC Current	600.0 μA, 6000 μA, 60.00 mA, 500.0 mA, 10.00 A	±(1.0% Rdg + 2 LSD) @ 600 μA to 6000 μA ranges
Frequency	60.00 Hz, 600.0 Hz, 6.000 kHz, 60.00 kHz, 600.0 kHz, 6.000 MHz, 60.00 MHz	+/- (0.1% rdg + 3 LSD)
Resistance	600.0 Ω, 6.000 kΩ, 60.00 kΩ, 600.0 kΩ 6.000 MΩ 60.00 MΩ	+/- (1.0% rdg + 2 LSD) @ 6 kΩ to 600 kΩ ranges
Capacitance	60.00 nF, 600.0 nF, 6.000 μF, 60.00 μF, 600.0 μF, 6000 μF, 60.00 mF	+/- (3.0% rdg + 5 LSD) @ 600 nF to 60 μF ranges
Temperature	-40 ⁰F to 1832 ⁰F -40 ⁰C to 1000 ⁰C	+/- (1.0% rdg + 12) @ >104 ⁰F to 752 ⁰F +/- (1.0% rdg + 8) @ >40 ⁰C to 400 ⁰C
Number of temperature inputs	Dual Thermocouple
Duty cycle	10.00% to 90.00%	+/- (1.2% rdg + 30 LSD) @ 5 Hz to 2 kHz
