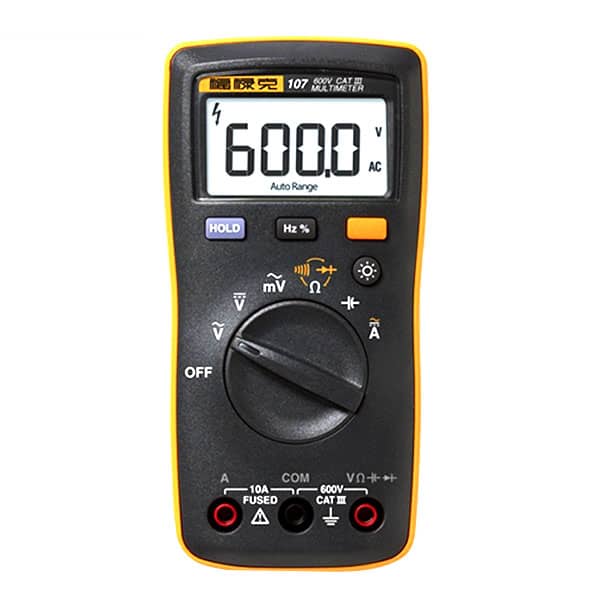

Fluke 107 Palm-sized Digital Multimeter
The Reliabel Fluke 107 Palm-sized Digital Multimeter
Product Overview
Fluke 107 Palmsized Digital Multimeter Price in Bangladesh is a popular unconventional for electricians, technicians, and professionals who dependence a compact but honorable tool for unspecified electrical measurements. This palmsized multimeter offers accurate readings for DC voltage, AC voltage, resistance, continuity, and frequency making it permissible for a broad range of residential, advertisement, and fresh industrial applications. Its little form factor allows passionate onehand operation and convenient portability, ideal for fieldwork and tight spaces.
The Fluke 107 is meant for users who require correctness without sacrificing simplicity. Its intuitive interface and like-minded, easytogate display further professionals utter their tasks speedily and bearing in mind than confidence. Whether you are troubleshooting circuits, checking go-getter supplies, or interchange routine maintenance, Fluke 107 Palmsized Digital Multimeter Price in Bangladesh delivers consistent and dependable results. The authentic RMS correctness of this multimeter enhances measurement reliability, especially in imitation of effective back obscure or nonlinear electrical signals.
Durability and construct feel are key features of the Fluke 107. This multimeter is built to withstand the demands of regular use, once rugged construction that resists wear and tear in animate acquit yourself environments. Hivisibility display and sturdy casing make it a dependable substitute for electricians on the go re job sites, workshops, and industrial settings alike. Safety is a priority, as the device includes builtin guidance and meets industry standards for safe operation, allowing users to doing a portion confidently subsequent to breathing electrical systems.
Fluke 107 Palmsized Digital Multimeter Price in Bangladesh combines undertaking, portability, and user-amicability in one compact package. Its lightweight design and professionalgrade correctness make it a vital appendage to any technicians toolkit. Professionals and hobbyists alike appreciate the savings account of functionality and ease of incorporation that this model offers, making it enough for both beginners and seasoned users.
Investing in Fluke 107 Palmsized Digital Multimeter Price in Bangladesh means choosing a measurement tool that delivers obedient feint, sound produce character, and lasting value. With its trusted reputation and versatile feature set, this multimeter remains a summit different for anyone seeking accurate and efficient electrical psychoanalysis in a portable and devoteeeasily reached design.
Fluke 107 Palm-sized Digital Multimeter
Key Features:
- Voltage, resistance, continuity, capacitance
- Diode test, plus frequency and duty cycle measurements
- Backlit display
- Input terminal for ac and dc current measurements to 10 A and current
- Data hold
Specifications
Specification: Fluke 107 Palm-sized Digital Multimeter
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits])
| Accuracy Specifications | ||||
| Function | Range | Resolution | Accuracy | |
| AC Volts (40 Hz to 500Hz)1 |
6.000 V 60.00 V 600.0 V |
0.001 V 0.01 V 0.1 V |
1.0 % + 3 | |
| DC Volts | 6.000 V 60.00 V 600.0 V |
0.001 V 0.01 V 0.1 V |
0.5 % + 3 | |
| AC Millivolts | 600.0 mV | 0.1 mV | 3.0 % + 3 | |
| Diode Test2 | 2.000 V | 0.001 V | 10 % | |
| Resistance (Ohms) |
400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ |
0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ |
0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3 |
|
| Capacitance3 | 50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF |
0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF |
2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5 |
|
| Frequency4 Hz (10 Hz – 100 kHz) |
50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz |
0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz |
0.1 % + 3 | |
| Duty Cycle4 | 1 % to 99 % | 0.1 % | 1 % typical 5 | |
| AC Current (40 Hz to 200 Hz) |
4.000 A 10.00 A |
0.001 A 0.01 A |
1.5 % + 3 | |
| DC Current | 4.000 A 10.00 A |
0.001 A 0.01 A |
1.5 % + 3 | |
|
||||
| Function | Overload Protection | Input Impedance (Nominal) | Common Mode Rejection Ratio | Normal Mode Rejection Ratio |
| AC Volts | 600 V 1 | >10 MΩ <100 pF 2 | >60 dB at dc, 50 Hz or 60 Hz |
− |
| AC Millivolts | 600 mV | >1M, <100 pF | >80 dB at 50 Hz or 60 Hz | − |
| DC Volts | 600 V 1 | >10 MΩ <100 pF | >100 dB at dc, 50 Hz or 60 Hz |
>60 dB at 50 Hz or 60 Hz |
|
||||
| General Specifications | ||||
| Maximum Voltage Between any Terminal and Earth Ground | 600 V | |||
| Display (LCD) | 6000 counts, updates 3/sec | |||
| Battery Type | 2 AAA, NEDA 24A, IEC LR03 | |||
| Battery Life | 200 hours minimum | |||
| Temperature | ||||
| Operating | 0 °C to 40 °C | |||
| Storage | -30 °C to 60 °C | |||
| Relative Humidity | ||||
| Operating Humidity | Non-condensing when <10°C ≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C |
|||
| Operating Humidity, 40 MΩ Range | ≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C | |||
| Altitude | ||||
| Operating | 2000 m | |||
| Storage | 12,000 m | |||
| Temperature Coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) | |||
| Fuse Protection for Current Inputs | 11A, 1000V Fast Fuse, Fluke specified part only | |||
| Size (HxWxL) | 142 mm x 69 mm x 28mm | |||
| Weight | 200 g | |||
| IP Rating | IEC 60529: IP 40 | |||
| Safety | IEC 61010-1: 600 V CAT III, Pollution Degree 2 | |||
| Electromagnetic Environment | IEC 61326-1: Portable | |||
| Electromagnetic Compatibility | Applies to use the Korea only. Class A Equipment (Industrial Broadcasting and Communication Equipment)1 | |||
| 1 This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes. | ||||
