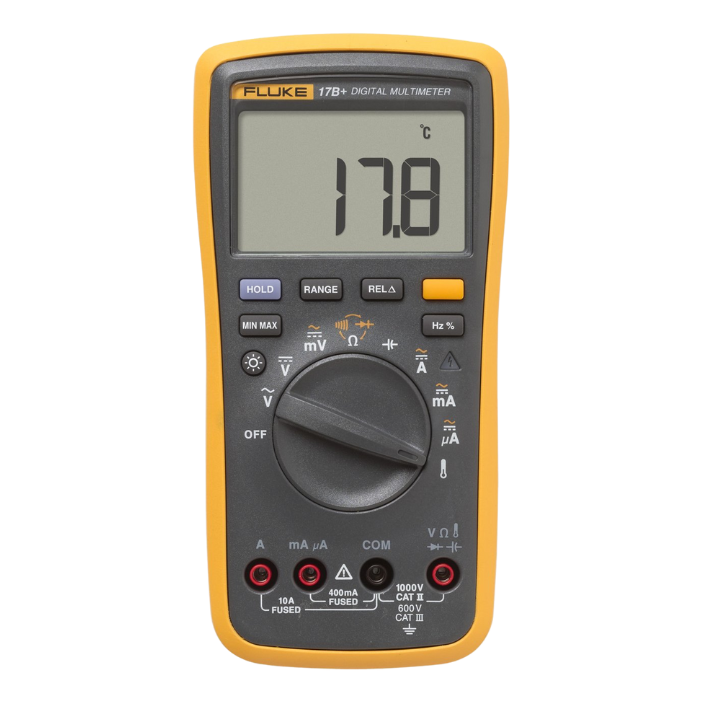

Fluke 17B+ Digital Multimeter

Fluke 17B+ Digital Multimeter Price in Bangladesh is one of the most obedient tools for electricians and technicians who require accurate and efficient measurement in their daily electrical tasks. This multimeter features valid RMS technology, ensuring precise readings for both sufficient and obscure electrical signals. Its compact and ergonomic design allows easy one-hand operation, making it conclusive for fieldwork and tight spaces.

This digital multimeter covers all snappish functions including voltage, current, resistance, continuity, and frequency chemical analysis, making it ideal for troubleshooting and money across residential, trailer, and industrial applications. The large and easy-to-admittance display ensures visibility even in low fresh conditions, helping professionals action measurements speedily and skillfully.

Durability is a key feature of Fluke 17B+, as it is built to withstand tough in leisure rouse uphill environments. Its robust construction ensures unshakable accomplish, making it a dependable substitute for professionals who dependence a tool that can handle frequent use. Safety is along with prioritized following than built-in auspices and be of the same opinion as soon as international standards, allowing users to take organization confidently later electrical systems.

Fluke 17B+ Digital Multimeter Price in Bangladesh combines accuracy, durability, and fan-simple operation in a single device. Its sudden confession period and easy interface make it sufficient for both experienced technicians and beginners. By investing in this multimeter, professionals profit a versatile tool that supports efficient diagnostics and obedient be alert in a variety of electrical tasks.

Whether you are troubleshooting unconventional circuits, drama routine maintenance, or measuring voltage and current, Fluke 17B+ Digital Multimeter Price in Bangladesh provides excellent value and ensures safe, precise, and efficient results all epoch.

Key Features: Fluke 17B Plus Digital Multimeter

600 V Cat III safety rating
50% bigger display with bright white backlight
Over-voltage indicator
Input terminal for ac and dc current measurements to 10 A current
Voltage, resistance, continuity, capacitance
Frequency and temperature measurement
Diode test, data hold

Specifications

Specification: Fluke 17B Plus Digital Multimeter

Function	Range	Resolution	Accuracy
AC volts (40 Hz to 500Hz)1	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	1.0% + 3
DC volts	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	0.5% + 3
AC millivolts	400.0 mV	0.1 mV	3.0% + 3
DC millivolts	400.0 mV	0.1 mV	1.0% + 10
Diode test2	2.000 V	0.001 V	10%
Resistance (Ohms)	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5% + 3 0.5% + 2 0.5% + 2 0.5% + 2 0.5% + 2 1.5% + 3
Capacitance3	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5
Frequency1 Hz (10 Hz – 100 kHz)	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	0.1% + 3
Duty Cycle1	1% to 99%	0.1%	1% typical 4
AC current μA (40 Hz to 400 Hz)	400.0 μA 4000 μA	0.1 μA 1 μA	1.5% + 3
AC current mA (40 Hz to 400 Hz)	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5% + 3
AC current A (40 Hz to 400 Hz)	4.000 A 10.00 A	0.001 A 0.01 A	1.5% + 3
DC current μA	400.0 μA 4000 μA	0.1 μA 1 μA	1.5% + 3
DC current mA	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5% + 3
DC current A	4.000 A 10.00 A	0.001 A 0.01 A	1.5% + 3
Temperature	50 °C- 400 °C 0 °C- 50 °C -55 °C- 0 °C	0.1C	2% ±1 °C ±2 °C 9% ±2 °C
Backlight	-	-	Yes
1All ac, Hz, and duty cycle are specified from 1% to 100% of range. Inputs below 1% of range are not specified. 2Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA. 3Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range). 4Typical means when the frequency is at 50 Hz or 60 Hz and the duty cycle is between 10% and 90%.

Function	Overload protection	Input impedance (Nominal)	Common mode rejection ratio	Normal mode rejection ratio
AC volts	1000 V 1	>10 MΩ <100 pF	>60 dB at dc, 50 Hz or 60 Hz	-
AC millivolts	400 mV	>1MΩ, <100 pF	>80 dB at 50 Hz or 60 Hz	-
DC volts	1000 V 1	>10 MΩ <100 pF	>100 dB at dc, 50 Hz or 60 Hz	>60 dB at 50 Hz or 60 Hz
DC millivolts	400 mV	>1MΩ, <100 pF	>80 dB at 50 Hz or 60 Hz	-
1 106 V Hz Max

General specifications
Maximum voltage between any terminal and earth ground	1000 V
Display (LCD)	4000 counts, updates 3/sec
Battery type	2 AA, NEDA 15A, IEC LR6
Battery life	500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.)
Temperature
Operating	0 °C to 40 °C
Storage	-30 °C to 60 °C
Relative humidity
Operating humidity	Non-condensing (<10°C) ≤90% RH at 10 °C to 30 °C ≤75% RH at 30 °C to 40 °C
Operating humidity	40 MΩ range ≤80% RH at 10 °C to 30 °C ≤70% RH at 30 °C to 40 °C
Altitude
Operating	2000 m
Storage	12,000 m
Temperature coefficient	0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Fuse protection for current inputs	440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only.
Size (H x W x L)	183 x 91 x 49.5 mm
Weight	455 g
IP rating	IP 40
Safety	IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2
Electromagnetic environment	IEC 61326-1: Portable
Electromagnetic compatibility	Applies to use in Korea only
