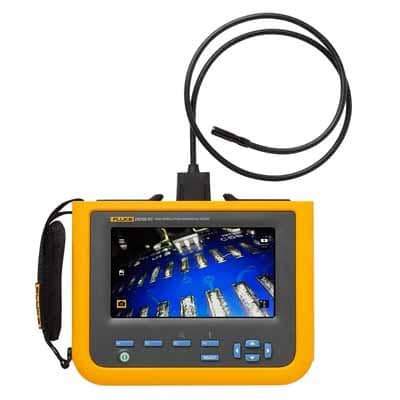

Fluke DS703 FC Diagnostic Video Borescope
Advanced visual inspection for hard to reach industrial environments
Product Overview
Fluke DS703 FC Diagnostic Video Borescope Price in Bangladesh
Fluke DS703 FC Diagnostic Video Borescope Price in Bangladesh is a highly searched topic among industrial professionals who need a reliable and high performance inspection tool for detailed visual diagnostics. This advanced video borescope is designed to inspect hard to reach areas inside machines equipment and industrial systems with exceptional clarity and precision.
The device features a high resolution 7 inch LCD touchscreen display that delivers sharp and clear visuals, allowing users to easily analyze internal components during inspections. It uses a 720p high definition imaging system with a flexible probe that can navigate tight spaces, making it ideal for maintenance engineers technicians and industrial inspectors.
One of the key strengths of this diagnostic videoscope is its dual view camera technology, which allows both forward and side viewing. This feature helps users gain a more complete understanding of internal conditions without repositioning the probe frequently. It also includes adjustable LED lighting that improves visibility in dark or enclosed environments.
The device supports WiFi connectivity and Fluke Connect integration, enabling users to transfer images and videos wirelessly for documentation and analysis. This makes reporting more efficient and supports better collaboration between field technicians and office teams.
Another important feature is its rugged industrial design. The camera is built to withstand harsh working conditions including dust water and impact, ensuring reliable performance in demanding environments such as manufacturing plants power stations and mechanical workshops. Its ergonomic design also allows comfortable handheld operation during long inspection sessions.
The DS703 FC also includes advanced functions such as digital zoom macro to micro viewing adjustment and Up is Up technology which automatically corrects image orientation for easier interpretation. These features enhance inspection accuracy and reduce the chances of misdiagnosis during complex maintenance tasks.
Overall this diagnostic video borescope is an excellent solution for professionals who require precise internal inspection capabilities combined with advanced imaging and connectivity features. It helps improve maintenance efficiency reduce downtime and support better decision making across various industrial sectors in Bangladesh.
Key Features: Fluke DS703 FC Diagnostic Video Borescope
- Bright 7" high resolution LCD touch screen
- High Definition, dual view imaging probe and adjustable light to provide a clear image
- Variety of rugged and high-resolution accessory probes available to address your specific application needs
- Improved battery charging and management
- Macro to micro zoom
- Up-is-Up™ technology for an appropriate orientation, regardless of the probe location or position
- Fluke Connect™ support including wireless image transfer
Specifications
Specifications: Fluke DS703 FC Diagnostic Video Borescope
| LCD Screen | |
| Type | 7 inch Capacitive touch screen |
| Refresh rate | 30 hz |
| LED backlight | Adjust display brightness for optimal viewing |
| Communication | |
| Wireless interface | WiFi 802.11b/g/n, Range: 33 feet (10.06 meters) |
| Data transfer | USB and micro HDMI cable |
| FlukeConnect™ | Save and share images via FlukeConnect™ |
| Instant upload to the cloud | Yes, with FlukeConnect™ |
| General Features | |
| Color palettes | Visible light, grayscale or inverted |
| Internal memory | 6 GB |
| Physical buttons | Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button |
| Carrying case | Protective EVA case |
| Strap | Hand Strap and Neck Strap included |
| Power adapter | AC adapter/battery charger input |
| Battery | 6400mAh 3.7 volt rechargeable internal li-ion battery |
| Battery life | 3 hours at 50 % LED brightness |
| Dimensions | 6.98 x 8.85 inches (17.73 x 22.48 cm) |
| Weight | 1.95 lbs (0.88 Kg) |
| General Specifications and Safety | |
| Tablet | IP54, dust protected and protected against water projected from a nozzle |
| Drop test | 2 meter (6.56 feet) |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F), 50 °C (122 °F) for less than 10 minutes |
| Storage temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating humidity | 90 % at 35 °C (95 °F), 75 % at 40 °C (104 °F), 45 % at 50 °C (122 °F) |
| Warranty | 2 years |
| Video Borescope Probe Specifications | 8.5mm Dual View (1.2M) (Included with DS703 FC) |
| Outer Diameter of Tip | 8.5mm |
| Length | 1.2 meter |
| Resolution | 1280 x 720 (720p) (HD) |
| Depth of Field (min) | 35.5mm (Front) 35.5mm (Side) |
| Depth of Field (max) | 111.7mm (Front) 111.7mm (Side) |
| Field of View | 75 degrees |
| Up-is-Up™ technology | Yes |
| Length of Distal Tip | 50mm |
| Outer Diameter of Conduit | 6.1mm |
| Conduit Pliability | Flexible but compliant |
| Waterproof | Waterproof to 2 psi |
| LED Type | Standard white |
| Still image format | JPG |
| Video recording format | MPEG compression |
| Digital zoom | Adjustable from 1x to 8x zoom |
| Camera Direction | Front and Side View |
| Streaming video | Via HDMI |
