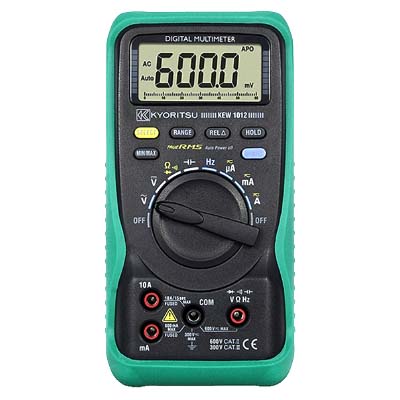

Kyoritsu KEW 1012 Digital Multimeters

Kyoritsu KEW 1012 Digital Multimeters

Kyoritsu KEW 1012 Digital Multimeters

Dependable digital multimeter designed for accurate electrical measurement and everyday diagnostics.

Product Overview

Kyoritsu KEW 1012 Digital Multimeter Price in Bangladesh

Kyoritsu KEW 1012 Digital Multimeter Price in Bangladesh is a reliable and user‑friendly electrical testing instrument designed for electricians, technicians, engineers, and electronics hobbyists who need accurate and consistent measurement results. This digital multimeter delivers essential measurement functions and dependable performance, making it suitable for a wide range of applications including residential electrical checks, commercial maintenance, and workshop troubleshooting tasks.

The Kyoritsu KEW 1012 supports a variety of core measurement functions such as AC and DC voltage measurement, AC and DC current testing, resistance measurement, and continuity testing. These essential capabilities allow users to identify potential issues in electrical circuits, verify proper wiring connections, and ensure the correct operation of electrical systems. The multimeter also includes diode testing, enabling quick evaluation of semiconductor components during repair or installation work.

Equipped with a clear digital LCD display, the Kyoritsu KEW 1012 provides easy‑to‑read measurement values that help users interpret results quickly and accurately. The device uses a straightforward manual ranging system, allowing users to select the appropriate measurement range for specific testing tasks. This manual range control provides technicians with precise measurement flexibility, especially useful during detailed diagnostics or specialized testing procedures.

Ergonomics and durability are key aspects of the Kyoritsu KEW 1012 design. Its compact and lightweight construction makes it comfortable to handle during extended use, while the robust housing ensures long‑lasting performance under routine work conditions. The intuitive control layout and clearly labeled function switch contribute to a smooth user experience, making the meter accessible to both experienced professionals and newcomers.

In addition to the core measurement features, the Kyoritsu KEW 1012 includes useful functionality such as the data hold feature, which allows users to freeze a measurement reading on the screen for easier review and recording. A low battery indicator alerts users when the battery requires replacement, helping maintain optimal performance and accuracy over time.

Kyoritsu KEW 1012 Digital Multimeter Price in Bangladesh reflects the value of a dependable and easy‑to‑use electrical testing tool that combines essential measurement functions, clear display, and robust construction. Whether you are performing routine electrical inspections, troubleshooting faults, or working on electronics projects, this multimeter provides reliable and accurate results, making it a valuable addition to any technician’s or hobbyist’s toolkit.

Key Features: Kyoritsu KEW 1012 Digital Multimeters

• True RMS can measure and indicate distorted waveforms
• 6040 counts with Bar Graph display
• MIN/MAX function enables to record min & max value
• REL(relative value) function to indicate the measurement variation

Specifications

Specifications: Kyoritsu KEW 1012 Digital Multimeters

DC V 600.0mV/6.000/60.00/600.0/600V
(Input Impedance: 10MΩ, 100MΩ only 600mV) ±0.5%±2dgt (600.0mV/6.000/60.00/600.0V) ±0.8%±3dgt (600V)
AC V 6.000/60.00/600.0/600V
(Input Impedance: 10MΩ) ±1.5%±5dgt
(6.000V) ±1.2%±3dgt (60.00/600.0V) ±1.5%±5dgt (600V)
DC A 600/6000µA/60/600mA/6/10A ±1.2%±3dgt (600/6000µA/60/600mA) ±2.0%±5dgt (6/10A)
AC A 600/6000µA/60/600mA/6/10A ±1.5%±4dgt (600/6000µA/60/600mA) ±2.2%±5dgt (6/10A)
Ω 600Ω/6/60/600kΩ/6/60MΩ ±1.0%±2dgt
(600Ω/6/60/600kΩ/6MΩ) ±2.0%±3dgt (60MΩ)
Continuity buzzer 0 - 600Ω (Buzzer sounds below 100Ω)
Diode test 2.8V Release Voltage:Approx. 0.4mA Test Current
Capacitance 40/400nF/4/40/400/4000µF
Frequency 10/100/1000Hz/10/100/1000kHz/10MHz
DUTY 0.1 - 99.9% (Pulse width/Pulse period) ±2.0%±2dgt (- 10kHz)
Applicable standards IEC 61010-1 CAT III 300V Pollution degree 2
IEC 61010-1 CAT II 600V Pollution degree 2
IEC 61010-031
IEC 61326
Display 6040 Counts
Power source R6 (1.5V) × 2 (Auto-power-OFF within 15 minutes)
Dimensions 161(L) × 82(W) × 50(D)mm
Weight Approx. 280g
Included Accessories 7066A (Test leads)
0.8A/600V (Ceramic Fuse) × 1built-in
10A/600V (Ceramic Fuse) × 1built-in
R6 × 2
Instruction Manual
Optional Accessories 7234 (Crocodile clip test lead)
9095 (Carrying case)
