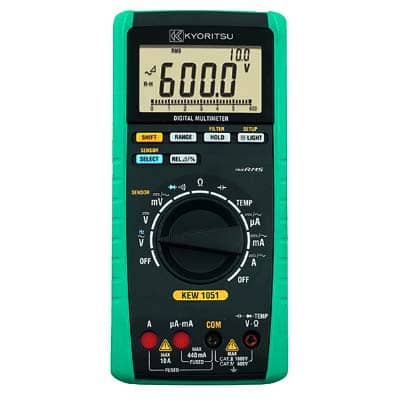

Kyoritsu KEW 1051 Digital Multimeters
Reliable digital multimeter designed for accurate electrical measurement and everyday diagnostics.
Product Overview
Kyoritsu KEW 1051 Digital Multimeter Price in Bangladesh
Kyoritsu KEW 1051 Digital Multimeter Price in Bangladesh is a dependable and versatile electrical testing instrument designed for electricians, technicians, engineers, and electronics hobbyists who need accurate and consistent measurement results. This digital multimeter offers essential measurement functions with reliable performance, making it suitable for a variety of electrical testing tasks including circuit troubleshooting, power verification, system inspection, and routine maintenance.
The Kyoritsu KEW 1051 supports core measurement functions such as AC and DC voltage testing, AC and DC current measurement, and resistance testing. These capabilities allow users to evaluate electrical circuits, check wiring integrity, and diagnose issues such as open circuits, short circuits, or incorrect voltage levels. The multimeter also includes continuity testing with an audible buzzer and diode testing, enabling technicians to quickly identify wiring faults and defective components during maintenance and repair work.
Equipped with a clear digital LCD display, the Kyoritsu KEW 1051 provides easy‑to‑read measurement values, helping users interpret results accurately and confidently. The device uses a user‑friendly manual ranging system, allowing users to select the appropriate measurement range for specific tasks. This manual range control gives technicians precise measurement flexibility, especially during detailed diagnostics or specialized testing procedures.
Ergonomics and durability are key aspects of the Kyoritsu KEW 1051 design. Its compact and sturdy construction ensures long‑lasting performance even under regular use in demanding work environments. The intuitive control layout and clearly labeled function switch make the meter easy to operate, providing a comfortable testing experience for both beginners and experienced professionals.
In addition to its primary measurement functions, the Kyoritsu KEW 1051 includes practical features that enhance usability. The data hold function allows users to freeze a measurement reading on the display for easier recording and analysis. A low battery indicator alerts users when the battery needs replacement, helping maintain accurate performance over time. These usability enhancements contribute to a consistent and dependable testing experience.
Key Features: Kyoritsu KEW 1051 Digital Multimeters
• 0.09% basic DC accuracy
• Large display with 6,000 counts
• True-RMS Measurements
• Low-pass filter for motor drive measurements
• User calibration function
• Complies with IEC 61010-1 CAT IV 600V, CAT III 1000V
• Terminal shutter to prevent incorrect test leads' insertion in current terminals
• Very wide operating temperature range from -10 to 55ºC
Specifications
Specifications: Kyoritsu KEW 1051 Digital Multimeters
| DC V | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V]) ±0.09%rdg±2dgt (Basic accuracy) |
|---|---|
| AC V [RMS] | 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy) |
| DC A | 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.2%rdg±2dgt (Basic accuracy) |
| AC A [RMS] | 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.75%rdg±5dgt (Basic accuracy) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±0.4%rdg±1dgt (Basic accuracy) |
| Continuity buzzer | 600.0Ω (The buzzer turns on for resistances lower than 50±30Ω) |
| Diode test | 2.000V ±1%rdg±2dgt Open circuit voltage: <3.5V (Approx. 0.5mA Measuring Current) |
| Capacitance | 10.00/100.0nF/1.000/10.00/100.0/1000µF ±2%rdg±5dgt (Basic accuracy) |
| Frequency | 10.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz ±0.02%rdg±1dgt (Basic accuracy) |
| Temperature | -50 - 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe) |
| Other functions | Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Zero Adjustment (Capacitor, Resistance), LCD backlight |
| Applicable standards | IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC) |
| Display | 6,000 counts |
| Power source | R6 (1.5V)×4 (Auto power-off: approx. 20 minutes) |
| Dimensions | 192(L)×90(W)×49(D) mm |
| Weight | Approx. 560g (including batteries) |
| Included Accessories | Accessories 7220A (Test leads), R6×4, Instruction manual, 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included) |
