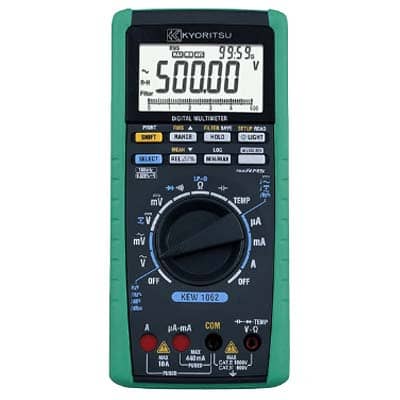

Kyoritsu KEW 1062 Digital Multimeter

Kyoritsu KEW 1062 Digital Multimeter Price in Bangladesh

Kyoritsu KEW 1062 Digital Multimeter Price in Bangladesh is a high-precision electrical testing instrument designed for engineers, electricians, laboratory technicians, and industrial maintenance professionals who require extremely accurate measurement results. This professional digital multimeter combines advanced diagnostic capabilities, high measurement accuracy, and industrial-grade safety features, making it suitable for demanding electrical testing, equipment maintenance, and technical troubleshooting.

The Kyoritsu KEW 1062 offers a comprehensive set of measurement functions including AC and DC voltage testing, AC and DC current measurement, resistance measurement, capacitance testing, frequency measurement, duty cycle measurement, temperature testing, continuity testing with an audible buzzer, and diode testing. These features allow technicians to analyze complex electrical circuits, verify system performance, and diagnose faults in electrical and electronic equipment efficiently.

One of the key highlights of the Kyoritsu KEW 1062 is its True RMS measurement capability, which ensures accurate readings even when measuring distorted or non-sinusoidal waveforms often found in modern electrical systems and motor drives. The meter also features 0.02% basic DC accuracy and a large 50,000-count dual display, allowing users to view two measurement values simultaneously such as voltage and frequency for improved diagnostics.

The multimeter also includes advanced analysis features such as maximum, minimum, and average value recording, relative measurement, peak hold function, and data hold. A built-in internal memory allows the device to store measurement results for later review. With an optional USB communication interface, the KEW 1062 can transfer measurement data to a computer for monitoring and analysis, which is useful for engineering work and detailed electrical inspections.

Safety and durability are important strengths of the Kyoritsu KEW 1062. The device complies with IEC safety standards including CAT IV 600V and CAT III 1000V, providing reliable protection when testing high-voltage electrical systems. It also includes a terminal shutter system to prevent incorrect test lead insertion and operates within a wide temperature range from -20°C to 55°C, making it suitable for both industrial fieldwork and laboratory environments.

Kyoritsu KEW 1062 Digital Multimeter Price in Bangladesh reflects the value of a professional-grade electrical testing tool that delivers high accuracy, advanced diagnostic functions, and reliable performance. Whether used for industrial maintenance, electrical inspection, or advanced electronics troubleshooting, this multimeter provides precise and dependable measurement results, making it an excellent choice for professionals who require high-quality electrical testing equipment.

Key Features: Kyoritsu KEW 1062 Digital Multimeter

• 0.02% basic DC accuracy
• Large display with 50,000 counts
• Dual display for the double indication for AC and DC, V and Hz, etc.
• True-RMS Measurements AC and AC+DC
• Wide AC Frequency bandwidth from 10Hz to 100kHz
• True-RMS or MEAN value detection mode can be selected
• Fast Peak Hold response time of 250µs
• Low-pass filter for motor drive measurements
• Low Power Ω for resistance measurements on sensible electronic circuits by a low and safe test current
• User calibration function
• Complies with IEC 61010-1 CAT IV 600V, CAT III 1000V
• Terminal shutter to prevent incorrect test leads' insertion in current terminals
• Very wide operating temperature range from -20 to 55ºC
• Large data internal memory
KEW 1062: 10,000 data (logging), 100 data (manual)
• Download data and Live Monitoring on a PC via the USB interface
(Option for USB Communication set)
* MAX 32,767 data can be transferred.
