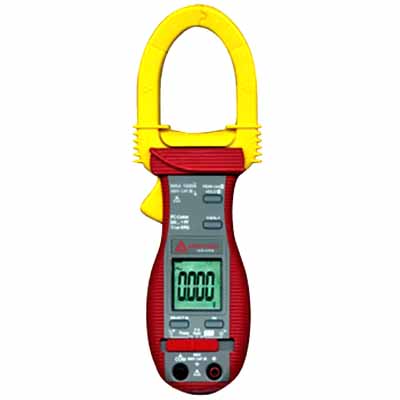

Amprobe ACD-41PQ 1000A Power Quality Clamp Meter
Advanced Power Quality Clamp Meter for Precise Electrical Analysis.
Product Overview
Amprobe ACD-41PQ 1000A Power Quality Clamp Meter Price in Bangladesh
Amprobe ACD-41PQ 1000A Power Quality Clamp Meter is a professional grade electrical testing solution providing tools that you can explore this Clamp Meter Price in Bangladesh and experience advanced power analysis accurate measurement and reliable performance for industrial and commercial applications.
Amprobe ACD-41PQ 1000A Power Quality Clamp Meter Price in Bangladesh is designed to measure AC current up to 1000A along with voltage resistance frequency and continuity testing while also offering advanced power quality analysis. It allows professionals to monitor key electrical parameters such as active power reactive power apparent power and power factor making it highly suitable for detailed electrical system evaluation.
This Clamp Meter Price in Bangladesh features True RMS technology ensuring accurate readings even in non linear electrical environments where waveform distortion is common. It is widely used for diagnosing power issues in industrial systems commercial buildings and energy management applications where stable and efficient power usage is critical.
One of the key highlights of this clamp meter is its ability to measure harmonics and analyze power quality. This helps identify issues such as voltage fluctuations harmonic distortion and inefficient energy consumption which are essential factors in maintaining system reliability and performance.
The device is built with a robust and ergonomic design making it suitable for demanding working environments. Its large clamp jaw allows easy measurement of thick conductors and high current systems while the clear backlit display ensures visibility in low light conditions.
Amprobe ACD-41PQ also includes advanced features such as data logging peak hold auto ranging and min max recording which help professionals capture and analyze electrical data over time. These features make it easier to detect irregularities and improve system performance through accurate diagnostics.
Safety is a key focus of this model as it is designed according to international safety standards ensuring secure operation during high voltage testing. This makes it a reliable tool for engineers technicians and electricians working in critical electrical environments.
Overall the Amprobe ACD-41PQ 1000A Power Quality Clamp Meter Price in Bangladesh represents a powerful combination of precision advanced analysis and durability. It is an ideal choice for professionals who need a high performance clamp meter for power quality analysis industrial diagnostics and efficient electrical system management in Bangladesh.
Key Features: Amprobe ACD-41PQ 1000A Power Quality Clamp Meter with Temperature
- True-rms sensing measures active (W), reactive (VAR) and apparent (VA) power with dual-display power factor readout
- Total harmonics distortion (THD), AC/DC voltage up to 600V, AC current up to 1000A, resistance, frequency, temperature
- Peak hold
- Optional PC interface capability (RS-232 KIT2)
- Audible continuity
- Auto power off
- Automatic polarity
- Low battery indication
- Data hold
- Large, easy to read LCD display with backlight
- Accommodates conductors up to 1.77 (45mm) in diameter
- Carrying case, test leads, batteries (installed), thermocouple and manual included
- Voltage overload protection for all functions up to 600V AC/DC
Specifications
Specifications: Amprobe ACD-41PQ 1000A Power Quality Clamp Meter with Temperature
| FEATURE | ACD-41PQ | ACD-45PQ |
| True-rms | • | |
| AC Current | 40.00 A, 400.0 A, 1000 A | 40.00 A, 400.0 A, 600 A |
| AC/DC Voltage | 600.0 V | |
| Resistance | 999.9 Ω | |
| Continuity | • | |
| Temperature | -58 °F → 572 °F (-50 °C → 300 °C) | – |
| Frequency | 5.00 Hz → 500.0 Hz | |
| Active power | (W) 0 kW → 600.0 kW | 0 kW → 360.0 kW |
| Reactive power (VAR) | 0 kVAR → 600.0 kVAR | 0 kVAR → 360.0 kVAR |
| Apparent power (VA) | 0 kVA → 600.0 kVA | 0 kVA → 360.0 kVA |
| Power Factor | 0.10 → 0.99 | |
| Energy (KWHr) | • | • |
| Total Harmonic Distortion (THD%) | 0.0 % → 99 % | – |
| Accommodates Conductors | up to 1.77″ (45 mm) in diameter | up to 1.02″ (26 mm) in diameter |
| Specifications | |
| TRMS: | YES |
| AC Current: | 40.0 / 400.0 / 1000 A |
| AC Current Basic Accuracy: | +/-(1.0% Rdg + 5 LSD) @ 50 and 60Hz |
| DC Voltage: | 600.0V |
| DC Voltage Basic Accuracy: | +/-(0.5% Rdg + 5 LSD) |
| AC Voltage: | 600.0V |
| AC Voltage Basic Accuracy: | +/-(0.5% Rdg + 5 LSD) @ 50 / 60 Hz |
| Resistance: | 999.9O |
| Resistance Basic Accuracy: | +/-(1.0% Rdg + 6 LSD) |
| Frequency: | 5.00Hz to 500.0Hz |
| Frequency Basic Accuracy: | +/-(0.5% Rdg +4 LSD) |
| THD-F *: | 0.0% to 99.9% |
| THD-F * Basic Accuracy**: | 1.5% of Reading + 6d @ Fund Frequency |
| Active Power (W): | 0 to 600.0 kW |
| Active Power (W) Basic Accuracy: | +/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th PF > 0.7 |
| Reactive Power (VAR): | 0 to 600.0 kVAR |
| Reactive Power (VAR) Basic Accuracy: | +/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th PF > 0.7 |
| Apparent Power (VA): | 0 to 600.0 kVA |
| Apparent Power (VA) Basic Accuracy: | +/-(2.0% Rdg + 6 LSD) @ Harmonics Fund to 10th |
| Power Factor: | 0.10 to 0.99 |
| Power Factor Basic Accuracy: | +/- 3 LSD @ Harmonics Fund to 21th |
| Temperature: | -58°F to 572° F (-50° C to 300° C) |
| Temperature Basic Accuracy: | +/-(2.0% Rdg + 6°F) +/-(2.0 % Rdg + 3°C) |
For complete specs please download the product datasheet under the “Resources” tab.
