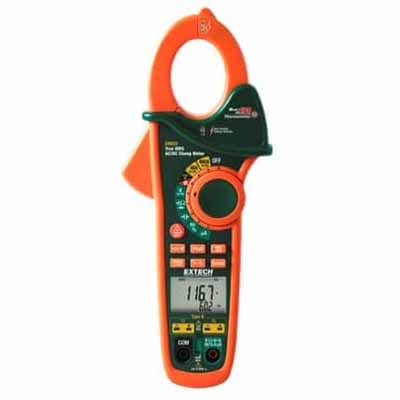

Extech EX623 400A Dual Input AC/DC Clamp Meter
All in one professional clamp meter with smart diagnostics
Product Overview
Extech EX623 400A Dual Input AC/DC Clamp Meter Price in Bangladesh
Extech EX623 400A Dual Input AC DC Clamp Meter is a professional grade multifunction electrical testing instrument designed for advanced diagnostics, and the Extech EX623 400A Dual Input AC DC Clamp Meter Price in Bangladesh reflects its position as a premium tool for electricians and HVAC technicians. It is widely used for electrical maintenance, industrial troubleshooting, and system performance analysis where accuracy and versatility are essential.
This clamp meter supports AC and DC current measurement up to 400A with true RMS accuracy, ensuring reliable readings even in distorted or non linear waveforms. It features a wide range of measurement functions including voltage, resistance, capacitance, frequency, and temperature testing, making it a complete diagnostic solution for professionals working in complex electrical environments.
One of its standout features is the built in infrared thermometer, which allows non contact temperature measurement for detecting overheating components and electrical faults. It also includes a dual thermocouple input for differential temperature measurement, which is especially useful in HVAC applications. In addition, the NCV (non contact voltage) detection feature improves safety by quickly identifying live circuits.
The device is designed with a durable ergonomic body and a clear digital display that ensures easy readability in field conditions. Its fast response time and data hold functions help technicians capture stable readings during dynamic electrical changes, improving efficiency during troubleshooting and maintenance work. The clamp jaw design also supports working in tight electrical panels with ease.
Built for professional use, the Extech EX623 combines multiple testing capabilities into a single compact instrument, reducing the need for multiple tools. This makes it highly efficient for engineers who require a reliable and versatile solution for electrical diagnostics in industrial and commercial environments.
Overall, the Extech EX623 400A Dual Input AC DC Clamp Meter stands out as a powerful and feature rich testing device. Its combination of true RMS accuracy, infrared temperature measurement, and multifunction capability makes it an excellent choice for professionals seeking precision, safety, and convenience in advanced electrical work.
Specifications
Specifications: Extech EX623 400A Dual Input AC/DC Clamp Meter
General Specifications:
AC Current 400.0A
AC Current Basic Accuracy ±1.5%
AC Current Max Resolution 10mA
AC Voltage 600V
AC Voltage Max Resolution 0.1mV
Capacitance 40mF
Capacitance Max Resolution 0.01nF
Continuity Yes
DC Current 400.0A
DC Current Basic Accuracy ±1.5%
DC Current Max Resolution 10mA
DC Microcurrent 4000µA
DC Microcurrent Max Resolution 0.01µA
DC Voltage 600V
DC Voltage Max Resolution 0.1mV
Diode Test Yes
Duty Cycle 0.5 to 99.0%
Frequency 40MHz
Frequency Max Resolution 0.001Hz
Jaw Size 1.25" (32mm), conductors up to 500MCM
Resistance 40.000MΩ
Resistance Max Resolution 0.01Ω
Temperature (IR) Basic Accuracy -58 to 518°F (-50 to 270°C)
Temperature (Type K) Max Resolution -58 to 1832°F (-50 to 1000°C)
True RMS Yes
Additional Details
Certifications CE, ETL
Dimensions 9 × 3.1 × 1.9" (229 × 80 × 49mm)
Power 1 × 9V battery
Safety Category CATIII - 600V
Warranty 2 years
Weight 10.7oz (303g)
