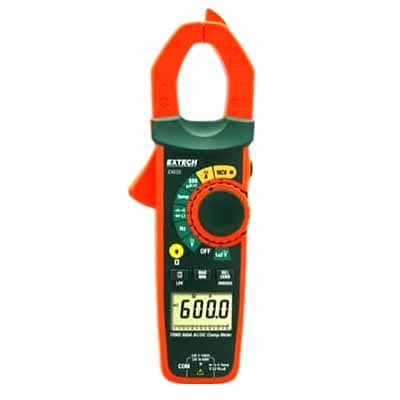

Extech EX655 600A True RMS AC/DC Clamp Meter
All in one professional clamp meter for advanced electrical testing
Product Overview
Extech EX655 600A True RMS AC/DC Clamp Meter Price in Bangladesh
Extech EX655 600A True RMS AC DC Clamp Meter is a high performance multifunction electrical testing instrument designed for professional technicians, and the Extech EX655 600A True RMS AC DC Clamp Meter Price in Bangladesh reflects its premium category among industrial grade clamp meters. It is widely used for electrical maintenance, HVAC servicing, and industrial troubleshooting where accuracy, safety, and versatility are required.
This clamp meter supports AC and DC current measurement up to 600A with true RMS accuracy, ensuring reliable readings even in distorted or non linear waveforms commonly found in modern electrical systems. Its wide jaw design allows it to clamp around larger conductors easily, making it suitable for industrial panels, power distribution systems, and complex installations.
The EX655 is a true multifunction tool, offering measurement of AC/DC voltage, resistance, capacitance, frequency, continuity, and diode testing in a single device. It also includes a non contact voltage (NCV) detector, helping users quickly identify live wires for safer operation.
One of its key strengths is the combination of advanced diagnostic functions such as inrush current mode, low pass filter for VFD signals, DC zero function, and min/max recording. These features make it especially useful for motor diagnostics, industrial equipment maintenance, and electrical system analysis.
In terms of usability, the device features a 6000 count backlit LCD display with bar graph indication for real time monitoring. It also includes data hold and auto power off functions for convenience during fieldwork. The ergonomic and rugged design ensures comfortable handling even during long working hours in demanding environments.
In Bangladesh, the Extech EX655 is positioned in the premium professional segment due to its advanced capabilities and industrial reliability. International listings typically place it around the mid to high price range for multifunction clamp meters depending on supplier and warranty conditions.
Overall, the Extech EX655 600A True RMS AC DC Clamp Meter stands out as a powerful, accurate, and versatile solution for electrical professionals. Its combination of true RMS measurement, multifunction capability, and robust build quality makes it an excellent choice for demanding diagnostic and maintenance tasks.
Key Features: Extech EX655 600A True RMS AC/DC Clamp Meter
- True RMS for accurate AC measurements
- 1.18" (30mm) jaw size accomodates conductors up to 350MCM
- 6000 count backlit LCD display with bargraph
- Low Impedance (LoZ) prevents false reading caused by ghost voltages
- Low Pass Filter (LPF) for accurate measurements of variable frequency drive signals
- Built-in non-contact voltage detector (NCV) with LED indicator
- Built-in LED flashlight for working in dimly-lit areas
- Functions include: NCV, AC/DC Voltage, AC/DC Current, AC/DC micro Current, Resistance, Capacitance, Frequency, Type-K Temperature, Diode Test, Continuity
- DC Zero mode, Data Hold, Min/Max, Relative function, Auto Power Off
- Inrush mode captures current surges during motor startup
Specifications
Specifications: Extech EX655 600A True RMS AC/DC Clamp Meter
General Specifications:
AC Current 60A, 600A
AC Current Basic Accuracy ±2.5% of reading
AC Current Max Resolution 0.01A
AC Microcurrent 600µA
AC Microcurrent Max Resolution 0.1µA
AC Voltage 750V
AC Voltage Basic Accuracy ±1.2% of reading
AC Voltage Max Resolution 1mV
Capacitance 60mF
Capacitance Max Resolution 0.01nF
Continuity Yes
DC Current 60A ,600A
DC Current Basic Accuracy ±2.5% of reading
DC Current Max Resolution 0.01A
DC Microcurrent 600µA
DC Microcurrent Max Resolution 0.1µA
DC Voltage 1000V
DC Voltage Basic Accuracy ±0.8% of reading
DC Voltage Max Resolution 0.1mV
Diode Test Yes
Frequency 10Hz to 1MHz
Frequency Max Resolution 0.01Hz
Jaw Size 1.18" (30mm), conductors up to 350MCM
Non-Contact Voltage (NCV) Detector 100 to 1000VAC
Resistance 60MΩ
Resistance Max Resolution 0.1Ω
Temperature (Type K) Max Resolution -40 to 1832°F (-40 to 1000°C)
Temperature (Type N) Basic Accuracy &nbs p; ; ; 1°F/°C
True RMS Yes
Additional Details
Certifications CE, UL
Dimensions 9 × 3 × 1.6" (228 × 77 × 41mm)
Power 3 × AAA (1.5V) batteries
Safety Category CATIII - 600V, CATII - 1000V
Warranty 3 years
Weight 9.4oz (265g)
