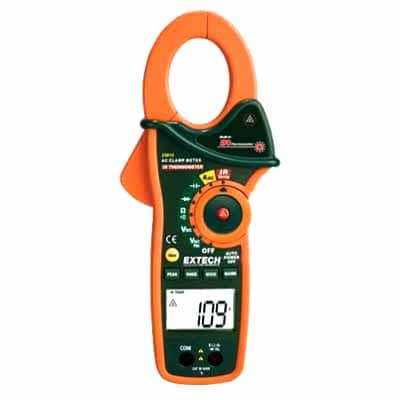

Extech EX810 1000A AC Clamp Meter with IR Thermometer
Powerful clamp meter with built in infrared temperature sensing
Product Overview
Extech EX810 1000A AC Clamp Meter with IR Thermometer Price in Bangladesh
Extech EX810 1000A AC Clamp Meter with IR Thermometer is a professional grade electrical measurement tool designed for industrial and field applications, and the Extech EX810 Clamp Meter Price in Bangladesh makes it a popular choice for electricians and technicians who need accurate current and temperature measurements in a single device. It is widely used for electrical maintenance, HVAC servicing, and industrial troubleshooting.
This clamp meter supports AC current measurement up to 1000A, making it suitable for heavy duty electrical systems and large power installations. Its true RMS capability ensures accurate readings even in distorted or non linear waveforms commonly found in modern electrical environments. The wide jaw design allows it to clamp around large conductors easily, improving usability in complex wiring setups.
One of its key features is the built in infrared (IR) thermometer with laser pointer, which allows non contact surface temperature measurement ranging from approximately -50°C to 270°C. This makes it especially useful for detecting overheating components, electrical faults, and thermal imbalances in equipment.
The device also functions as a multifunction tester, supporting AC/DC voltage measurement, resistance, capacitance, frequency, continuity, and diode testing. This versatility makes it a complete diagnostic solution for professionals who need both electrical and thermal analysis in one compact instrument. Its fast response and clear digital display help improve efficiency during troubleshooting tasks.
Designed for professional use, the Extech EX810 features a rugged ergonomic body that ensures durability in demanding environments. Functions such as data hold, min/max recording, and peak hold help technicians capture stable readings during fluctuating electrical conditions, making fieldwork more efficient and reliable.
Overall, the Extech EX810 1000A AC Clamp Meter with IR Thermometer stands out as a versatile and dependable solution for electrical and thermal diagnostics. Its combination of high current measurement capability, infrared temperature sensing, and multifunction performance makes it an excellent choice for professionals working in industrial maintenance and HVAC systems.
Specifications
Specifications: Extech EX810 1000A AC Clamp Meter with IR Thermometer
General Specifications
AC Current 0.1 to 1000A
AC Current Basic Accuracy ±2.8%
AC Voltage 0.1mV to 600V
AC Voltage Basic Accuracy ±1.8%
Capacitance 0.001nF to 40,000µF
Continuity Yes
DC Voltage 0.1mV to 600V
DC Voltage Basic Accuracy ±1.5%
Diode Test Yes
Frequency 0.001kHz to 4kHz
Frequency Basic Accuracy ±1.5%
Inrush Current Yes
Jaw Size 1.7" (43mm), conductors up to 750MCM or two 500MCM
Resistance 0.1 to 40MΩ
Temperature (IR) Basic Accuracy -58 to 518°F (-50 to 270°C)
Temperature (IR) Max Resolution ±2.0% of reading or ±4°F/±2°C
Additional Details:
Certifications CE, UL
Dimensions 0.6 × 4.3 × 2" (270 × 110 × 50mm)
Power 1 × 9V battery
Safety Category CATIII - 600V
Warranty 2 years
Weight 13.6oz (386g)
