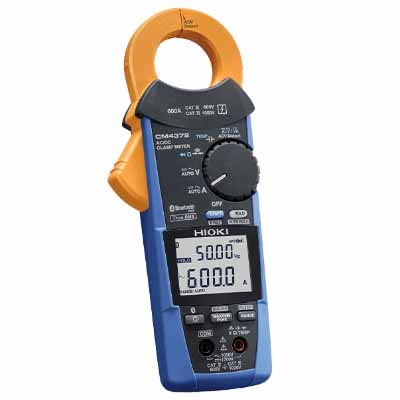

Hioki CM4372 True-RMS Clamp Meter Price in Bangladesh

Hioki CM4372 True RMS Clamp Meter is a high end professional electrical measuring instrument designed for advanced industrial diagnostics, allowing you to explore the Hioki CM4372 True RMS Clamp Meter Price in Bangladesh as a premium solution for accurate AC DC current measurement and system analysis. Built for engineers, electricians, and industrial technicians, this device ensures reliable performance in harsh and demanding environments.

This advanced clamp meter supports AC and DC current measurement up to 600A along with voltage, resistance, capacitance, frequency, and temperature measurement. It features True RMS technology, ensuring highly accurate readings even in distorted waveforms and non linear electrical loads, making it ideal for industrial systems, solar installations, and maintenance applications.

The device is equipped with Bluetooth connectivity, allowing real time data transfer to smartphones or tablets for monitoring, logging, and waveform analysis. This smart feature improves workflow efficiency and enables modern digital reporting for field engineers and technicians.

It also includes a rugged IP54 rated design that provides dust and water resistance, making it suitable for tough working environments. The slim jaw structure allows easy access to tight electrical panels and crowded wiring spaces without interrupting nearby conductors.

In addition to its core measurement functions, this clamp meter supports inrush current detection, auto AC DC selection, max min recording, and advanced filtering features for improved measurement stability. These features make it highly useful for troubleshooting and preventive maintenance in industrial environments.

Overall, this clamp meter stands out as a premium industrial solution for modern electrical measurement needs. Its combination of precision, durability, and smart connectivity makes it an essential instrument for professionals who require accurate and reliable performance in critical applications.

Key Features: Hioki CM4372 AC/DC CLAMP METER

Send measured values to a smartphone or tablet using Bluetooth® wireless technology
Multiple measurement functions
Automatic AC/DC function helps boost work efficiency
Measure DC voltages of up to 1700 V (*1)
Simultaneously measure inrush current in RMS and crest values
Expanded -25 °C to 65 °C operating temperature range
IP54 dustproof and waterproof enclosure *Jaws (current sensor portion): IP50

Specifications

Specifications: Hioki CM4372 True-RMS Clamp Meter

DC Current range	20.00 A/600.0 A, Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range)
AC Current range	20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.3% rdg. ±0.08 A (at 20 A)
Crest factor	20.00 A range: 7.5, 600.0A range: 3 or less
DC+AC Current range	20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±0.13 A (at 20 A)
DC Voltage range	600.0 mV to 1500 V (*1), 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV)
AC Voltage range	6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy: ±0.9% rdg. ±3 dgt.
DC+AC Voltage range	6.000 V to 1000 V, 4 ranges, Basic accuracy: ±1.0% rdg. ±7 dgt.
Resistance range	600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±5 dgt.
Capacitance range	1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±5 dgt.
Frequency range	9.999 Hz to 999.9 Hz, Basic accuracy: ±0.1% rdg. ±1 dgt.
Temperature (K)	-40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C
Voltage detection	Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz
Other functions	Automatic AC/DC detection, Plus/Minus judgement function of DC A, DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment
Dustproof, waterproof	Grip: IP54 (when measuring an insulated conductor only), Jaw (the current sensor portion of the instrument)/ barrier: IP50 *Risk of electric shock from the conductor being measured increases when wet.
Interface	Bluetooth® 4.0LE, Supported devices: iOS, Android™ smartphone/tablet GENNECT Cross (free downloadable app) : display measured values and waveforms, Simple logging function, Waveform monitor function, Hold save function
Power supply	LR03 Alkaline battery ×2, Continuous use: 24 hr (Backlight OFF, Bluetooth® ON), 45 hr (Backlight OFF, Bluetooth® OFF)
Core jaw diameter	69 mm (2.72 in) W× 14 mm (0.55 in) D, φ33 mm (1.30 in)
Dimensions and mass	65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g (12.0 oz)
