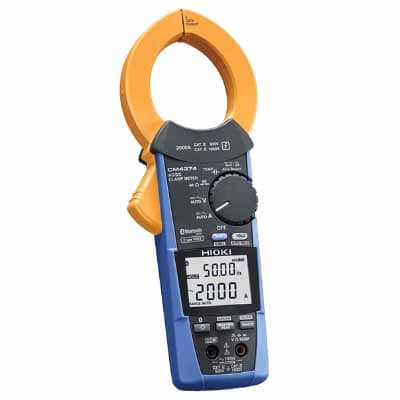

Hioki CM4374 True-RMS Clamp Meter
High performance Bluetooth clamp meter for heavy duty industrial electrical testing
Product Overview
Hioki CM4374 True-RMS Clamp Meter Price in Bangladesh
Hioki CM4374 True RMS Clamp Meter is a high end professional electrical measuring instrument designed for advanced industrial applications, allowing you to explore the Hioki CM4374 True RMS Clamp Meter Price in Bangladesh as a premium solution for accurate AC and DC current measurement and system diagnostics. Built for engineers, electricians, and industrial technicians, this device ensures reliable performance in harsh and demanding environments.
This advanced clamp meter supports AC and DC current measurement up to 2000A along with AC/DC voltage, resistance, capacitance, frequency, and temperature measurement. It features True RMS technology, ensuring highly accurate readings even in distorted waveforms and non linear electrical loads, making it ideal for industrial power systems, solar installations, and heavy electrical maintenance work.
One of its key strengths is Bluetooth connectivity, which allows real time data transfer to smartphones or tablets for monitoring, waveform analysis, and reporting. This smart feature improves workflow efficiency and supports modern digital maintenance systems used in industrial environments.
The device is designed with a rugged IP54 rated enclosure that provides dust and water resistance, making it suitable for tough working conditions. Its slim yet strong jaw structure allows easy access into tight electrical panels while maintaining safe non contact measurement.
In addition to its core measurement capabilities, this clamp meter supports inrush current detection, frequency analysis, and advanced diagnostic functions that help identify electrical issues quickly and accurately. These features make it highly useful for troubleshooting and preventive maintenance in industrial systems.
Overall, this clamp meter stands out as a premium industrial solution for modern electrical measurement needs. Its combination of high accuracy, durability, and smart connectivity makes it an essential tool for professional engineers working in critical electrical environments.
Key Features: Hioki CM4374 AC/DC CLAMP METER
- Send measured values to a smartphone or tablet using Bluetooth® wireless technology
- Multiple measurement functions
- Automatic AC/DC function helps boost work efficiency
- Measure DC voltages of up to 1700 V (*1)
- Simultaneously measure inrush current in RMS and crest values
- Expanded -25 °C to 65 °C operating temperature range
- IP54 dustproof and waterproof enclosure *Jaws (current sensor portion): IP50
Specifications
Specifications: Hioki CM4374 AC/DC CLAMP METER
| DC Current range | 600.0 A/2000 A, Basic accuracy: ±1.3% rdg. ±0.3 A (600A range) |
|---|---|
| AC Current range | 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy: ±1.3% rdg. ±0.3 A (600A range) |
| Crest factor | 600.0 A range: 3 or less, 2000 A range: 2.84 or less |
| DC+AC Current range | 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (at 600 A) |
| DC Voltage range | 600.0 mV to 1500 V (*1), 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV) |
| AC Voltage range | 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy: ±0.9% rdg. ±3 dgt. |
| DC+AC Voltage range | 6.000 V to 1000 V, 4 ranges, Basic accuracy: ±1.0% rdg. ±7 dgt. |
| Resistance range | 600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±5 dgt. |
| Capacitance range | 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±5 dgt. |
| Frequency range | 9.999 Hz to 999.9 Hz, Basic accuracy: ±0.1% rdg. ±1 dgt. |
| Temperature (K) | -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C |
| Voltage detection | Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz |
| Other functions | Automatic AC/DC detection, Plus/Minus judgement function of DC A, DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment |
| Dustproof, waterproof | Grip: IP54 (when measuring an insulated conductor only), Jaw (the current sensor portion of the instrument)/ barrier: IP50 *Risk of electric shock from the conductor being measured increases when wet. |
| Interface | Bluetooth® 4.0LE, Supported devices: iOS, Android™ smartphone/tablet GENNECT Cross (free downloadable app) : display measured values and waveforms, Simple logging function, Waveform monitor function, Hold save function |
| Power supply | LR03 Alkaline battery ×2, Continuous use: 24 hr (Backlight OFF, Bluetooth® ON), 45 hr (Backlight OFF, Bluetooth® OFF) |
| Core jaw diameter | 92 mm (3.62 in) W×18 mm (0.71 in) D, φ55 mm (2.17 in) |
| Dimensions and mass | 65 mm (2.56 in) W×250 mm (9.84 in) H×35 mm (1.38 in) D mm, 530 g (18.7 oz) |
