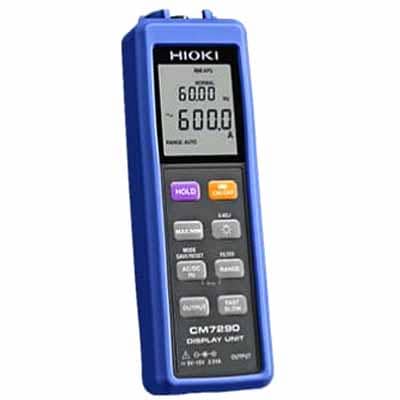

HIOKI CM7290 Display Unit Price in Bangladesh

HIOKI CM7290 Display Unit is a professional grade signal processing and monitoring device designed for advanced current measurement systems, and the HIOKI CM7290 Display Unit Price in Bangladesh reflects its specialized use in industrial electrical testing and data acquisition setups. It is mainly used as a companion unit for Hioki CT7000 series current sensors, enabling accurate display and output of measured electrical signals.

This display unit supports multiple output modes including waveform, RMS, peak, and frequency data, making it highly flexible for different measurement needs. It provides simultaneous dual display of measured values, frequency, and output status, allowing engineers to monitor electrical behavior in real time with clarity and precision.

The CM7290 is designed to work with compatible Hioki current sensors such as CT7600 and CT7700 series, effectively transforming them into a complete measurement and logging system. It can output signals to recorders, loggers, or oscilloscopes for further analysis, making it suitable for long term monitoring and advanced diagnostics in industrial environments.

In terms of usability, the device supports flexible power options including AA batteries, AC adapter, and external DC power supply, ensuring reliable operation in both field and laboratory conditions. Its rugged design and industrial grade build quality make it suitable for demanding environments such as factories, power plants, and research facilities.

Based on international market listings, the price of the HIOKI CM7290 Display Unit generally falls in the mid-premium range, depending on region, distributor, and configuration.

Overall, the HIOKI CM7290 Display Unit stands out as a highly specialized and reliable solution for advanced electrical measurement systems. Its combination of flexible output functions, sensor compatibility, and industrial durability makes it an essential tool for professionals working in precision monitoring and electrical analysis.

Key Features: HIOKI CM7290 Display Unit

Power supply and signal output for Current Sensor CT7000 series
Simultaneous dual display of the measured values, frequency, and output rate
Four output formats to output data to loggers or other devices (via Display Unit)
Supports AC adapter, AA alkaline batteries, and external power supply

Specifications

Specifications: HIOKI CM7290 Display Unit

Accuracy guaranteed: 3 years
Waterproof characteristics are intended to maintain measurement function; measuring energized parts while the instrument is wet will increase the risk of electric shock.

Sensor	CT7642, 7742	CT7636, 7736	CT7631, 7731
Measurement parameters	DC, AC, DC+AC, Hz
Crest factor	3 at 5000 counts or 2.5 at 6000 counts for AC and DC+AC
Output method	WAVE, RMS, PEAK, FREQ
Input connectors	HIOKI PL 14
Output update time	PEAK--- FAST: 0.02 s / NORMAL: 0.2 s / SLOW: 1 s FREQ--- FAST: FAST: 0.2 s / NORMAL: 0.2 s / SLOW: 3.0 s (WAVE, RMS: analogue output)
PEAK sensing duration	2 ms or greater (during PEAK MAX/PEAK MIN and PEAK output)
Other functions	Auto range, Zero adjustment at power-up, Analysis display, Filter, Output amplification, Display value hold, Backlight , Auto-power save, Save settings, keypad lock
Typical accuracy (WAVE output DC)	±2.0% rdg. ±10.8 mV (60.00 A range)	±2.5% rdg. ±30.8 mV (60.00 A range)	±1.5% rdg. ±5.8 mV (60.00 A range)
Typical accuracy (RMS output AC)	±2.3% rdg. ±10.8 mV (60.00 A range)	±2.8% rdg. ±30.8 mV (60.00 A range)	±1.8% rdg. ±5.8 mV (60.00 A range)
Power supply	LR6 alkaline batteries (AA) ×2, Continuous use: 16 h (backlight OFF and WAVE or RMS output, when used with CT7600s), Rated power 2.5 VA or AC adapter 9445-02/03 (100 to 240V AC), or 5 to 15 V DC external power supply, Rated power 2.5 VA
Dust and water resistance *	IP54 (with sensor connected and caps fitted to AC adapter and power connector)
Dimensions and mass	52 mm (2.05 in)W × 163 mm (6.42 in)H × 37 mm (1.46 in)D, 220 g (7.8 oz) (including protector and battery)
Included accessories	LR6 alkaline batteries ×2, Protector ×1, Instruction manual ×1
