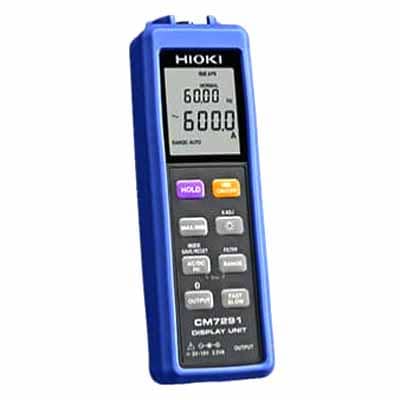

Hioki CM7291 Wireless Display Unit Price in Bangladesh

Hioki CM7291 Wireless Display Unit is an advanced measurement interface designed for professional current sensing systems, and the Hioki CM7291 Wireless Display Unit Price in Bangladesh reflects its specialized use in industrial electrical monitoring and data analysis setups. It is not a standalone clamp meter but works as a display and communication unit for Hioki current sensor systems, enabling precise and flexible measurement workflows.

This device supports Bluetooth wireless connectivity, allowing real time data transmission to smartphones and tablets. Through dedicated applications, users can view measured values, monitor waveforms, and analyze electrical behavior directly in the field. This makes it highly useful for technicians working in power systems, transportation, and industrial maintenance environments where live monitoring is essential.

The CM7291 is designed to work with Hioki CT7000 series current sensors, forming a complete measurement system when combined. It provides multiple output formats such as RMS, peak, waveform, and frequency data, allowing users to perform detailed electrical analysis depending on application needs. Its flexible configuration makes it suitable for complex diagnostics and long term monitoring tasks.

In terms of usability, the unit offers a dual display that can show measured values along with frequency and output information simultaneously. This helps engineers quickly interpret data without needing additional instruments. It also supports data output to loggers and recording devices, making it valuable for advanced testing and documentation workflows in industrial environments.

The device is built with portability and field usability in mind, supporting battery operation as well as external power options. Its rugged construction ensures reliable performance in demanding environments such as factories, power plants, and transportation systems. The integration of smart wireless communication improves efficiency and reduces the need for complex wired setups.

Overall, the Hioki CM7291 Wireless Display Unit is a specialized and high performance solution for modern electrical measurement systems. Its combination of wireless connectivity, flexible data output, and industrial grade design makes it an essential component for professionals working with advanced current sensing and monitoring applications.

Key Features: Hioki CM7291 Wireless Display Unit

Send measured values to a smartphone or tablet using Bluetooth® wireless technology
Use the GENNECT Cross dedicated app to display and review measured values and waveforms in real time
Power supply and signal output for Current Sensor CT7000 series
Simultaneous dual display of the measured values, frequency, and output rate
Four output formats to output data to loggers or other devices (via Display Unit)
Supports AC adapter, AA alkaline batteries, and external power supply

Specifications

Specifications: Hioki CM7291 Wireless Display Unit

Accuracy guaranteed: 3 years

Sensor	CT7642, 7742	CT7636, 7736	CT7631, 7731
Measurement parameters	DC, AC, DC+AC, Hz
Crest factor	3 at 5000 counts or 2.5 at 6000 counts for AC and DC+AC
Output method	WAVE, RMS, PEAK, FREQ
Input connectors	HIOKI PL 14
Output update time	PEAK--- FAST: 0.02 s / NORMAL: 0.2 s / SLOW: 1 s FREQ--- FAST: FAST: 0.2 s / NORMAL: 0.2 s / SLOW: 3.0 s (WAVE, RMS: analog output)
PEAK sensing duration	2 ms or greater (during PEAK MAX/PEAK MIN and PEAK output)
Other functions	Auto range, Zero adjustment at power-up, Analysis display, Filter, Output amplification, Display value hold, Backlight , Auto-power save, Save settings, keypad lock
Typical accuracy (WAVE output DC)	±2.0% rdg. ±10.8 mV (60.00 A range)	±2.5% rdg. ±30.8 mV (60.00 A range)	±1.5% rdg. ±5.8 mV (60.00 A range)
Typical accuracy (RMS output AC)	±2.3% rdg. ±10.8 mV (60.00 A range)	±2.8% rdg. ±30.8 mV (60.00 A range)	±1.8% rdg. ±5.8 mV (60.00 A range)
Communication interface	Built-in Bluetooth® 4.0 LE, Display of measured values on an iOS or Android handset (CM7291 only)
Power supply	LR6 alkaline batteries (AA) ×2, Continuous use: 16 h (backlight OFF and WAVE or RMS output, when used with CT7600s), Rated power 2.5 VA or AC adapter 9445-02/03 (100 to 240V AC), or 5 to 15 V DC external power supply, Rated power 2.5 VA
Dust and water resistance (*1)	IP54 (with sensor connected and caps fitted to AC adapter and power connector)
Dimensions and mass	52 mm (2.05 in)W × 163 mm (6.42 in)H × 37 mm (1.46 in)D, 220 g (7.8 oz) (including protector and battery)
Included accessories	LR6 alkaline batteries ×2, Protector ×1, Instruction manual ×1

*1:Waterproof characteristics intended to maintain measurement function; measuring energized parts while instrument is wet will increase the risk of electric shock.

Countries and regions where wireless operation is currently supported (CM7291)

Last update: August 2022

Countries and regions where wireless operation is currently supported	Australia, Austria, Bangladesh, Belgium, Bulgaria, Canada, Chile, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong, Hungary, Iceland, Ireland, Israel, Italy, Japan, Kenya, Korea, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malta, Myanmar, Netherlands, New Caledonia, New Zealand, Norway, Peru, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom, United States, Viet Nam
Note	Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law.
