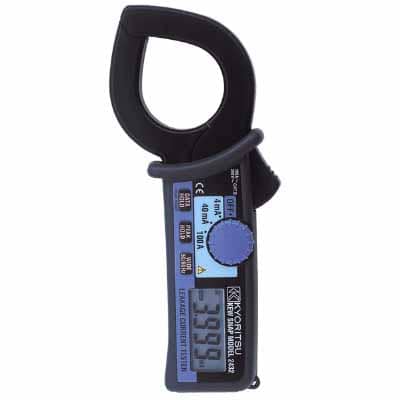

Kyoritsu 2432 Clamp Meter

Kyoritsu 2432 Clamp Meter

Kyoritsu 2432 Clamp Meter

High sensitivity measurement for precise electrical safety

Product Overview

Kyoritsu 2432 Clamp Meter Price in Bangladesh

Kyoritsu 2432 Clamp Meter is a highly sensitive leakage current measuring device designed for professional electrical diagnostics, and the Kyoritsu 2432 Clamp Meter Price in Bangladesh reflects its strong reputation for accuracy and reliability. Built for detecting even very small leakage currents, it is an essential tool for ensuring electrical safety and system efficiency.

This clamp meter features a high sensitivity measurement system that allows users to detect minimal leakage currents with excellent precision. It supports multiple current ranges, making it suitable for both low level leakage detection and higher current measurement tasks. This capability is particularly useful for identifying insulation faults and preventing potential electrical issues in complex systems.

One of its key advantages is the frequency selector switch, which helps eliminate the effects of harmonics during measurement. This ensures stable and accurate readings even in environments where electrical noise can impact performance. Such a feature is especially beneficial when working with modern equipment that generates irregular signals.

The clamp meter is designed with a wide jaw opening that can accommodate thicker cables and multiple conductors. This improves usability in industrial and commercial settings where wiring systems are often dense and complex. The ability to measure current without disconnecting circuits enhances both convenience and safety during operation.

Durability is another strong feature of the Kyoritsu 2432, as it is constructed using high quality materials that can withstand demanding working conditions. Its robust build ensures long term performance while maintaining consistent accuracy. The device also meets important safety standards, giving users confidence when handling electrical systems.

In addition, the compact and ergonomic design makes it easy to handle and operate, even during extended use. Its intuitive controls and clear display allow users to perform measurements efficiently without unnecessary complexity. This makes it suitable for both experienced professionals and technicians who require dependable tools for everyday tasks.

Overall, the Kyoritsu 2432 Clamp Meter stands out as a precise, durable, and user friendly solution for leakage current measurement. With its advanced sensitivity, reliable performance, and practical design, it is an excellent choice for professionals focused on safety and accurate electrical diagnostics.

Key Features: Kyoritsu 2432 Clamp Meters

• High Sensitive Model
• Frequency Selector Switch to eliminate the effect of harmonics.
• Three AC current ranges:4mA/40mA/100A.
• Resolution 0.001mA.

Specifications

Specifications: Kyoritsu 2432 Clamp Meters

AC A (50/60Hz) 4/40mA/100A
±1%rdg±5dgt (4/40mA)
±1%rdg±5dgt (0 - 80A)
±5%rdg (80.1 - 100A)
AC A (WIDE) 4/40mA/100A
±1%rdg±5dgt [50/60Hz],
±2.5%rdg±10dgt [20Hz - 1kHz] (4/40mA)
±1%rdg±5dgt [50/60Hz],
±2.5%rdg±10dgt [40Hz - 1kHz] (0 - 80A)
±5%rdg [50/60Hz],
±10%rdg [40Hz - 1kHz] (80.1 - 100A)
Maximum circuit voltage 600V AC/DC (between line/neutral)
300V AC/DC (against earth)
Conductor size Ø40mm max.
Frequency response 20Hz - 1kHz (40Hz - 1kHz:100A)
Effect of External Stray Magnetic Field 2mA AC approx. in proximity to a 15mm-dia
conductor carrying 100A AC
Safety Standard IEC 61010-1 CAT III 300V Pollution Degree 2
IEC 61010-2-032
Response Time Approx. 2 seconds
Power source Two R03 or equivalent (DC1.5V) batteries
Dimensions 185(L) × 81(W) × 32(D)mm
Weight 290g approx.
Included Accessories 9097 (Carrying Case)
R03 (1.5V) × 2
Instruction Manual
