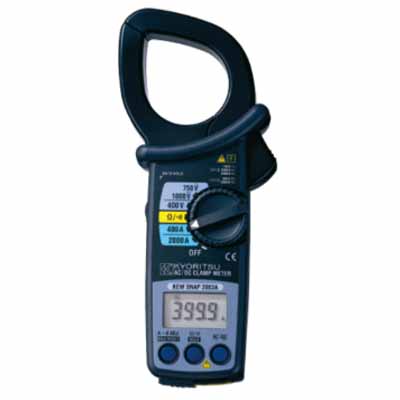

Kyoritsu KEW 2003A Digital AC/DC Clamp Meter Price in Bangladesh

Kyoritsu KEW 2003A Digital AC DC Clamp Meter is a heavy duty professional electrical measuring instrument designed for accurate high current testing, allowing you to explore the Kyoritsu KEW 2003A Digital AC DC Clamp Meter Price in Bangladesh as a reliable solution for industrial electrical diagnostics and power system measurement. Built for engineers and technicians, this device ensures stable and precise performance in demanding environments.

This advanced clamp meter supports AC and DC current measurement up to 2000A along with AC voltage, DC voltage, resistance, and continuity functions. It features True RMS capability, ensuring accurate readings even in distorted waveforms and non linear electrical loads, making it suitable for industrial power distribution, maintenance, and troubleshooting applications.

The device is designed with a large 55mm jaw opening that allows easy clamping on thick cables and busbars commonly used in industrial environments. This makes it highly practical for fieldwork where high capacity conductors are present, improving efficiency and safety during measurement tasks.

It also includes useful features such as recorder output capability for long term monitoring and peak function for capturing transient or inrush current values. These functions make it ideal for analyzing motor startups, generator loads, and power distribution behavior.

Built with a rugged and durable housing, the KEW 2003A is designed for long lasting performance in harsh working conditions. Its ergonomic design ensures comfortable handling during extended use, while the clear digital display provides easy readability in field environments.

In addition to its core measurement functions, this clamp meter is widely used in industrial maintenance, electrical troubleshooting, HVAC systems, and power system analysis. Its combination of high current range, durability, and measurement accuracy makes it a trusted tool for professional engineers and electricians.

Overall, this clamp meter stands out as a powerful and dependable solution for heavy duty AC/DC current measurement needs. Its balance of precision, robustness, and industrial functionality makes it an essential instrument for modern electrical work.

Key Features: Kyoritsu KEW 2003A Digital Clamp Meters

• Equipped to measure both AC and DC current with transformer jaws of large diameter.
• Can measure AC and DC currents up to 2000A.
• Output terminal for connection to recorders.

Specifications

Specifications: Kyoritsu KEW 2003A Digital Clamp Meters

AC A	400A/2000A (0 - 1000A) ±1.5%rdg±2dgt [50/60Hz] ±3%rdg±4dgt [40 - 500Hz] ±5%rdg±4dgt [500Hz - 1kHz] 2000A (1001 - 2000A) ±3%rdg±2dgt [50/60Hz]
DC A	400/2000A ±1.5%rdg±2dgt
AC V	400/750V ±1.5%rdg±2dgt [50/60Hz] ±1.5%rdg±4dgt [40Hz - 1kHz]
DC V	400/1000V ±1%rdg±2dgt
Ω	400/4000Ω ±1.5%rdg±2dgt
Continuity buzzer	buzzer sounds below 50±35Ω
Conductor size	Ø55mm max.
Frequency response	40Hz - 1kHz
Output	Recorder : DC400mV against AC/DC400A DC200mV against AC/DC2000A
Safety Standard	IEC 61010-1 CAT IV 600V , CAT III 1000V IEC 61010-031 IEC 61010-2-032
Power source	R6 (AA) (1.5V) × 2
Dimensions	250(L) × 105(W) × 49(D)mm
Weight	530g approx.
Included Accessories	7107A (Test leads) 9094 (Carrying Case) R6 (AA) × 2 Instruction Manual
Optional Accessories	7256 (Output cord)
