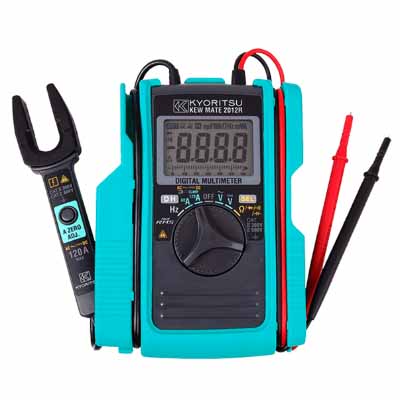

Kyoritsu KEWMATE 2012R Digital Multimeter Price in Bangladesh

Kyoritsu KEWMATE 2012R Digital Multimeter is a compact professional electrical measuring instrument designed for accurate AC and DC current measurement, allowing you to explore the Kyoritsu KEWMATE 2012R Digital Multimeter Price in Bangladesh as a reliable solution for field electrical diagnostics and troubleshooting. Built for electricians and engineers, this device ensures stable performance and high accuracy in a portable design.

This advanced KEWMATE series multimeter supports AC and DC current measurement up to 120A using an integrated open jaw clamp sensor. It also supports AC/DC voltage, resistance, continuity, capacitance, and frequency measurement, making it a versatile all in one tool for electrical testing and maintenance work. The True RMS style measurement capability ensures accurate readings even in non linear electrical loads and complex waveforms.

One of its key advantages is the compact pocket size design combined with clamp functionality, allowing users to measure current without disconnecting circuits. The open jaw sensor improves safety and efficiency in tight electrical spaces, making it ideal for field service work and quick troubleshooting tasks.

The device is built with a rugged and lightweight structure that ensures durability during regular professional use. It includes useful features such as data hold, auto power saving, continuity buzzer, and overload protection, helping improve usability and safety during electrical testing.

In addition to its core measurement capabilities, this multimeter is widely used for industrial maintenance, electrical installation checks, HVAC servicing, and general troubleshooting work. Its combination of portability, accuracy, and clamp functionality makes it a trusted tool for professionals who need fast and reliable measurements in the field.

Overall, this clamp multimeter stands out as a compact yet powerful solution for modern electrical measurement needs. Its balance of portability, safety, and precision makes it an essential instrument for electricians and technicians working in demanding environments.

Key Features: Kyoritsu KEWMATE 2012R Digital Multimeter

• Innovative Multimeters with current measurements up to 120A AC/DC
• Unique Open Jaw technology for AC/DC current measurements
• Very compact and as reliable as a tradictional full size multimeter

Specifications

Specifications: Kyoritsu KEWMATE 2012R Digital Multimeter

DC V	600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±1.0%rdg±3dgt
AC V	6.000/60.00/600.0V (Input impedance: approx.10MΩ) ±1.5%rdg±5dgt (45 - 400Hz)
DC A	60.00/120.0A ±2.0%rdg±8dgt (60A) ±2.0%rdg±5dgt (120A)
AC A	60.00/120.0A ±2.0%rdg±5dgt (45 - 65Hz)
Ω	600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±1.0%rdg±5dgt (600Ω/6/60/600kΩ) ±2.0%rdg±5dgt (6MΩ) ±3.0%rdg±5dgt (60MΩ)
Continuity buzzer	Buzzer sounds below 35±25Ω
Diode test	2V±3.0%rdg±5dgtOpen-loop voltage: approx. 2.7V
Capacitance	400.0nF/4.000/40.00µF ±2.5%rdg±10dgt
Frequency	(AC A) 100/400Hz ±0.2%rdg±2dgt (100Hz) ±0.1%rdg±1dgt (400Hz) (DC A) 100/1000Hz/10/100/300.0kHz ±0.2%rdg±2dgt (100Hz) ±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz) (Input sensitivity Current: more than 6A Voltage: more than 6V [- 10kHz]/more than 20V [10k - 300kHz])
Conductor size	Ø12mm max.
Applicable standards	IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326
Power source	R03 (1.5V) × 2 * Continuous measuring time: DCV: approx. 150hours, ACA: approx. 25hours (Auto power save: approx. 15 minutes)
Dimensions	128 (L) × 92 (W) × 27 (D) mm
Weight	220g approx. (including batteries)
Included Accessories	R03 (1.5V) × 2, Instruction manual
Optional Accessories	9107 (Carrying case [Soft])
