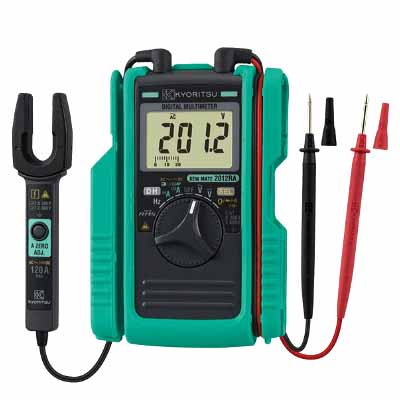

Kyoritsu KEWMATE 2012RA Digital Multimeter
Compact all in one clamp multimeter for fast AC DC measurement
Product Overview
Kyoritsu KEWMATE 2012RA Digital Multimeter Meter Price in Bangladesh
Kyoritsu KEWMATE 2012RA Digital Multimeter is a compact and professional electrical testing instrument designed for accurate AC and DC current measurement, allowing you to explore the Kyoritsu KEWMATE 2012RA Digital Multimeter Price in Bangladesh as a reliable solution for field electrical diagnostics and troubleshooting. Built for electricians and engineers, this device ensures stable performance with high precision in a portable design.
This advanced KEWMATE series multimeter features an integrated open jaw clamp sensor that supports AC and DC current measurement up to 120A without breaking the circuit. It also supports AC/DC voltage, resistance, continuity, capacitance, and frequency measurement, making it a versatile all in one tool for electrical testing and maintenance work. The True RMS capability ensures accurate readings even in distorted waveforms and non linear loads.
One of its key advantages is its pocket size design combined with clamp functionality, which makes it highly suitable for fast field inspections and tight electrical spaces. The open jaw sensor allows safe non contact current measurement, improving both efficiency and safety during operation.
The device is built with a rugged yet lightweight structure that ensures durability for professional use. It includes useful features such as data hold, auto power saving, continuity buzzer, and overload protection, helping improve usability during daily electrical work.
In addition to its core measurement functions, this multimeter is widely used for industrial maintenance, electrical installation checking, HVAC servicing, and general troubleshooting. Its combination of portability, safety, and accuracy makes it a trusted tool for professionals who need quick and reliable measurements in the field.
Overall, this clamp multimeter stands out as a compact yet powerful solution for modern electrical measurement needs. Its balance of precision, portability, and functionality makes it an essential instrument for electricians and technicians.
Key Features: Kyoritsu KEWMATE 2012RA Digital Multimeter
• Innovative Multimeters with current measurements up to 120A AC/DC
• Unique Open Jaw technology for AC/DC current measurements
• Very compact and as reliable as a traditional full-size multimeter
Specifications
Specifications: Kyoritsu KEWMATE 2012RA Digital Multimeter
| DC V | 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±1.0%rdg±3dgt |
|---|---|
| AC V | 6.000/60.00/600.0V (Input impedance: approx.10MΩ) ±1.5%rdg±5dgt (45 - 400Hz) |
| DC A | 60.00/120.0A ±2.0%rdg±8dgt (60A) ±2.0%rdg±5dgt (120A) |
| AC A | 60.00/120.0A ±2.0%rdg±5dgt (45 - 65Hz) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±1.0%rdg±5dgt (600Ω/6/60/600kΩ) ±2.0%rdg±5dgt (6MΩ) ±3.0%rdg±5dgt (60MΩ) |
| Continuity buzzer | Buzzer sounds below 35±25Ω |
| Diode test | 2.000V±3.0%rdg±5dgt Open-loop voltage: approx. 2.7V |
| Capacitance | 400.0nF/4.000/40.00µF ±2.5%rdg±10dgt |
| Frequency | (AC A) 99.99/400.0Hz ±0.2%rdg±2dgt (100Hz) ±0.1%rdg±1dgt (400Hz) (DC A) 99.99/999.9Hz/9.999/99.99/300.0kHz ±0.2%rdg±2dgt (100Hz) ±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz) (Input sensitivity Current: more than 6A Voltage: more than 6V [- 10kHz]/more than 20V [10k - 300kHz]) |
| Conductor size | Ø12mm max. |
| Applicable standards | IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS) |
| Power source | R03 (AAA)(1.5V) × 2 * Continuous measuring time: DCV: approx. 150hours, ACA: approx. 25hours (Auto power save: approx. 15 minutes) |
| Dimensions | 128 (L) × 92 (W) × 27 (D) mm |
| Weight | 220g approx. (including batteries) |
| Included Accessories | R03 (AAA) × 2, Instruction manual |
| Optional Accessories | 9107 (Carrying case [Soft]) |
