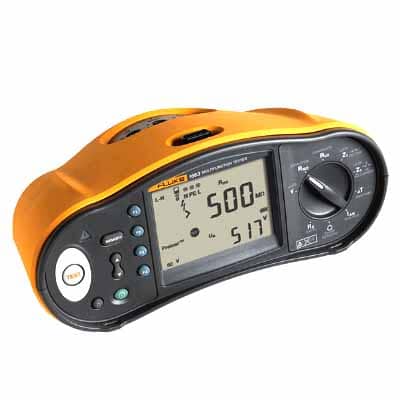

Fluke 1663 Multifunction Testers Price in Bangladesh

Fluke 1663 Multifunction Testers is a dependable and efficient solution for professional electrical testing, allowing you to explore the Fluke 1663 Multifunction Testers Price in Bangladesh as a trusted option for installation diagnostics. Designed for electricians and engineers, this multifunction tester delivers consistent accuracy and performance across various applications.

This advanced device offers a wide range of testing capabilities including insulation resistance, continuity, loop impedance, and RCD testing. It ensures precise measurements that help verify electrical systems meet safety standards and compliance requirements. Its ability to handle multiple test functions in one unit improves efficiency and reduces the need for additional tools.

The tester is built with a user friendly interface that allows easy navigation through different testing modes. Its compact and lightweight design makes it highly portable, enabling professionals to carry and use it comfortably in different work environments. The clear display ensures easy reading of results, even in challenging conditions.

Durability is a key advantage of this multifunction tester. Constructed to withstand demanding job sites, it provides long lasting performance and reliability. The device also includes essential safety features that help protect both the user and the equipment during operation, making it suitable for high responsibility tasks.

In addition to its strong functionality, this tester is versatile enough for installation verification, maintenance work, and troubleshooting. It supports professionals in achieving accurate diagnostics while saving time and effort on complex testing procedures.

Overall, this multifunction installation tester stands out as a reliable and practical tool for modern electrical work. Its combination of precision, durability, and ease of use makes it an essential choice for professionals seeking efficient and safe testing solutions.

Key Features : Fluke 1663 Multifunction Testers

Full-featured tester for installation professionals
Tests to all local regulations and provides test results for complete documentation
Tests continuity at L-N, N-PE inputs
Tests smooth dc sensitive RCDs (Type B)
Tests earth resistance, voltage, and frequency
Offers multiple test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V

Specifications

Specifications: Fluke 1663 Multifunction Testers

AC voltage measurement
Range	500 V
Resolution	0.1 V
Accuracy 45 Hz – 66 Hz	0.8% + 3
Input impedance	360 kΩ
Overload protection	660 V rms
Continuity testing (RLO)
Range (autoranging)	20 Ω / 200 Ω / 2000 Ω
Resolution	0.01 Ω / 0.1 Ω / 1 Ω
Open Circuit Voltage	>4 V
Insulation resistance measurement (RISO)
Test voltages	50-100-250-500-1000 V
Accuracy of tTest voltage (at rated test current)	+10%, -0%
Test voltage	50 V 100 V 250 V 500 V 1000 V
Insulation resistance range	20 MΩ /50 MΩ 20 MΩ / 100 MΩ 20 MΩ / 200 MΩ 20 MΩ / 200 MΩ / 500 MΩ 20 MΩ / 200 MΩ / 1000 MΩ
Resolution	0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ 0.01 MΩ / 0.1 MΩ / 1 MΩ
Test current	1 mA @ 50 kΩ 1 mA @ 100 kΩ 1 mA @ 250 kΩ 1 mA @ 500 kΩ 1 mA @ 1 MΩ
Loop and line impedance (ZI)
Range	10 Ω / 0.001 Ω / High current mΩ mode
Resolution	0.01 Ω / 0.1 Ω / 1 Ω
Prospective earth fault current, PSC test
Range	1000 A / 10 kA (50 kA)
Resolution	1 A / 0.1 kA
Computation	Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.
RCD testing, RCD types tested
RCD Type	AC¹ G²,S³
Model 1663	A4, AC¹, G²,S³
Notes	¹Responds to AC ²General, no delay ³Time delay 4Responds to pulsed signal 5Responds to smooth DC signal
Tripping speed test (ΔT)
Current settings¹	10-30-100-300-500-1000 mA – VAR 10-30-100 mA
Multiplier	x ½, x 1 x 5
Measurement range	RCD Type G	310 ms 50 ms
	RCD Type S	510 ms 160 ms
Notes	¹1000 mA type AC only 700 mA maximum type A in VAR mode VAR mode not available for type B.
RCD/FI-Tripping Current Measurement/Ramp Test (IΔN)
Current range	30% to 110% of RCD rated current¹
Step size	10% of IΔN²
Dwell time	Type G	300 ms/step
	Type S	500 ms/step
Measurement accuracy	±5%
Specified trip current ranges (EN 61008-1)	Includes: Fluke 1663 Multifunction Testers 6x AA (IEC LR6) cell batteries C1600 hard carrying case Zero adapter Heavy duty mains cord STD standard test lead set Padded carrying and waist strap Quick reference guide TP165X remote control probe and lead User's manual on CD-ROM N/A Write a Review Your Rating Your NameYour EmailYour Review Submit Review
