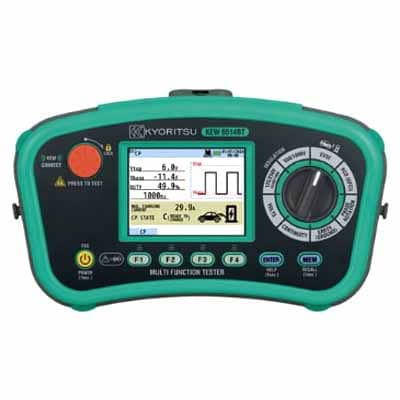

Kyoritsu 6514BT Digital Multifunction Installation Tester
Advanced multifunction testing with smart efficiency
Product Overview
Kyoritsu 6514BT Digital Multifunction Installation Tester Price in Bangladesh
Kyoritsu 6514BT Digital Multifunction Installation Tester is a powerful all in one electrical testing solution, and the Kyoritsu 6514BT Digital Multifunction Installation Tester Price in Bangladesh is frequently searched by professionals who need accurate and efficient installation testing tools. Designed for modern electrical environments, this device combines multiple essential testing functions into a single compact unit.
Built with advanced multifunction capabilities, the tester supports insulation resistance, earth resistance, continuity, loop impedance, RCD testing, voltage measurement, and phase rotation. This wide range of testing options makes it highly suitable for inspection, maintenance, and troubleshooting of electrical installations. By integrating multiple functions into one device, it helps reduce the need for carrying separate instruments, improving overall work efficiency.
The device features a clear color LCD display that enhances readability and allows users to easily interpret test results in real time. Its intuitive interface ensures smooth operation, making it accessible for both experienced engineers and field technicians. The built in auto memory function enables users to store measurement data for later review, supporting better documentation and analysis.
One of the standout features of this tester is its smart connectivity. With Bluetooth and USB support, users can transfer data directly to smartphones, tablets, or computers for reporting and analysis. This wireless capability improves workflow efficiency and reduces the need for manual data entry, making it ideal for professionals who prioritize speed and accuracy in their work.
The inclusion of advanced testing functions such as EVSE diagnostics further enhances its versatility. It allows users to perform specialized testing related to electric vehicle charging systems, making it a future ready solution for evolving electrical applications. Additionally, the tester incorporates Anti Trip Technology, enabling loop testing without causing unwanted RCD tripping, ensuring uninterrupted operation.
Safety is a core focus in its design. The device includes automatic discharge functionality that safely releases stored electrical energy after testing. This helps protect both the user and the equipment during operation. Its compliance with international safety standards ensures reliable and secure performance in demanding environments.
Durability is another key advantage of the Kyoritsu 6514BT. The rugged construction is built to withstand tough working conditions, making it suitable for industrial and field use. Despite its robust build, the tester remains portable and ergonomic, allowing easy handling during extended tasks.
Overall, this multifunction installation tester stands out for its comprehensive testing capabilities, smart features, and durable design. It is an essential tool for professionals who require accurate, efficient, and reliable electrical testing across a wide range of applications.
Key Features: Kyoritsu 6514BT Digital Multifunction Installation Tester
Versatile tester supporting various electrical testing for completion inspections, maintenance and troubleshooting.
EVSE dedicated test function offers extra by combination use of EVSE ADAPTER.
(EVSE： Electric Vehicle Supply Equipment)
- Offers various tests for electrical installation
Insulation / Earth / Continuity / Motor rotation / 2-Wire Loop / RCD / Phase rotation / Frequency / AC V / SPD(Varistor) - Auto memory
- Color LCD Display
- Dedicated function for EVSE
Specifications
Specifications: Kyoritsu 6514BT Digital Multifunction Installation Tester
|
Insulation resistance |
SPD (Varistor) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Test voltage | 25V | 50V | 100V | 125V | 250V | 500V | 1000V | Max.1000V | |
| Measuring range (Auto-ranging) |
2.000/20.00MΩ | 2.000/20.00/200.0MΩ | 2.000/20.00/ 200.0/1000MΩ |
2.000/20.00/ 200.0/2000MΩ |
0 to 1000V (goes up by 1V) |
||||
| Accuracy |
±2%rdg±2dgt |
±2%rdg±2dgt (0.100 to 25.0MΩ) ±5%rdg (other) |
±2%rdg±2dgt (0.100 to 50.0MΩ) ±5%rdg (other) |
±2%rdg±2dgt (0.100 to 100.0MΩ) ±5%rdg (other) |
±2%rdg±2dgt (0.100 to 1000MΩ) ±5%rdg (other) |
±5%rdg±5dgt | |||
| Rated current | 1.0 to 1.2ｍA | － | |||||||
| 0.025 MΩ |
0.05 MΩ |
0.1 MΩ |
0.125 MΩ |
0.25MΩ | 0.5MΩ | 1MΩ | － | ||
| Short circuit current | 1.5mA max | ||||||||
Earth
| Range | 20.00/200.0/2000Ω (Auto-ranging) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Accuracy | ±2%rdg±0.08Ω (20.00Ω) ±2%rdg±3dgt (200/2000Ω) |
||||||||
Loop impedance (L-PE (2-wire))
| Rated voltage | 85 to 260V (50/60Hz) |
|---|---|
| Impedance range | 200.0/2000Ω |
| Accuracy | ±3%rdg±10dgt |
| Measurement current | L-PE:7mA |
Continuity
| Range | 20.00/200.0/2000Ω (Auto-ranging) |
|---|---|
| Open circuit voltage (DC) | 7 to 14V |
| Measuring current | 200ｍA or more (2Ω or less) |
| Accuracy | ±2.0%rdg±8dgt |
RCD
| Rated voltage | 85 to 440V (50/60Hz) | ||
|---|---|---|---|
| Function |
×1/2, ×1, Ramp | ||
| 15/30/50/100/200/500mA | |||
| RCD type | AC(G) | ||
| Accuracy | Trip cuurent |
×1/2 | -8 to -2% |
| ×1 | +2 to +8% | ||
| Ramp | -4 to +4% | ||
| Trip time | ×1/2 | ±1%rdg±2ms | |
| ×1 | |||
EVSE (EV charger)
| Measuring range | Vtop | 2.0 to 15.0V |
|---|---|---|
| Vbase | -15.0 to -2.0V | |
| Frequency | 980 to 1020Hz | |
| Duty | 10.0 to 96.0% | |
| Max. charging current |
6.0 to 80.0A | |
| Accuracy | Vtop | ±4dgt |
| Vbase | ||
| Frequency | ±0.5%rdg±4dgt | |
| Duty | ±10dgt | |
| Max. charging current |
Varies depending on the accuracy of duty measurement. |
Volts
| Range | 300.0/600V (Auto-ranging) | |
|---|---|---|
| Measuring range | Volts | 2 to 600V |
| Frequency | 45 to 65Hz | |
| Accuracy | Volts | ±2%rdg±4dgt |
| Frequency | ±0.5%rdg±2dgt | |
Phase rotation
| Measuring range | Phase rotation | 3 to 600V (45 to 65Hz) |
|---|---|---|
| Moter rotation check |
0.1 to 2V (1 to 10Hz) | |
| Indication | Clockwise direction: “1.2.3”and clockwise phase sequence icon Counterclockwise direction: “3.2.1”and counterclockwise phase sequence icon |
|
General
| Applicable srandards | IEC 61010-1, IEC 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-2-034, IEC 61557-1,2,3,4,5,6,7,10, IEC 60529 (IP40) |
|---|---|
| Communication interface | USB, Bluetooth® 5.0 |
| Power source | LR6 (AA)(1.5V) × 8 |
| Dimansion | 136(L) × 235(W) × 114(D) mm |
| Weight | Approx. 1300g (including batteries) |
| Accessories | 7281 (Test leads with remote control switch) 7247 (Distribution board test lead) 7228A (Earth resistance test leads) 8017B (Extension prod long) 8041 (Auxiliary earth spikes [2spaikes/1set]) 8923 (Fuse [0.5A/600V]×1 (included), 1 (spare) 9084 (Soft case) 9142 (carrying case) 9151 (Shoulder strap) 9199 (shoulder pad) LR6(AA) × 8, Instruction manual |
| Optional accessories | 7272 (Precision measurement cord set) 8212-USB (USB adapter) 8259 (Adapter fpr measurement terminal) 8601 (EVSE ADAPTER) 8602 (EVSE ADAPTER) |
