Kyoritsu 6516 Digital Multifunction Installation Tester
Complete testing power in one professional device
Product Overview
Kyoritsu 6516 Digital Multifunction Installation Tester Price in Bangladesh

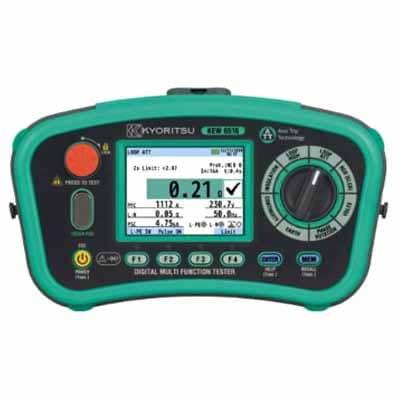

Kyoritsu 6516 Digital Multifunction Installation Tester is a versatile and high performance electrical testing solution, and the Kyoritsu 6516 Digital Multifunction Installation Tester Price in Bangladesh is often searched by professionals who need a comprehensive and reliable testing instrument. Designed for modern electrical installations, this device combines multiple testing capabilities into one efficient unit.
Built with advanced multifunction technology, the tester supports insulation resistance, continuity, loop impedance, RCD testing, earth resistance, voltage measurement, and phase rotation. This all in one functionality allows technicians to perform a wide range of electrical tests without switching between different devices, improving workflow efficiency and saving time on site.
The device features a large color LCD display that presents all test data clearly, making it easier for users to interpret results during operation. Its intuitive interface simplifies navigation between functions, ensuring smooth operation even in complex testing environments. The clear visual guidance helps reduce errors and enhances overall productivity for both experienced engineers and technicians.
One of the standout features of this tester is its Anti Trip Technology, which allows loop testing without causing unwanted RCD trips. This ensures uninterrupted testing and accurate readings, particularly in sensitive electrical systems. It also supports both two wire and three wire testing methods, providing flexibility for different installation conditions.
Safety is a core focus of the Kyoritsu 6516. The device includes automatic discharge functionality and built in protective mechanisms that help ensure safe operation during high voltage testing. These features protect both the user and the equipment, making it suitable for critical electrical applications where safety is essential.
Durability further enhances its value, as the tester is constructed with a rugged and impact resistant design. It is built to withstand demanding industrial environments, ensuring long term reliability and consistent performance even with regular use. The ergonomic design also improves handling, allowing users to operate the device comfortably over extended periods.
Overall, this multifunction installation tester stands out for its comprehensive testing capabilities, user friendly design, and durable construction. It is an essential tool for professionals who require accurate, efficient, and dependable electrical testing across a wide range of applications.
Key Features: Kyoritsu 6516 Digital Multifunction Installation Tester
A lot of Testing Power is in the hands of Electrical Installation Professionals!
- DISPLAY
Color LCD 3.5 inches dot matrix. - ATT
Anti-Trip Technology (with 2 & 3 wire) for no trip LOOP L-PE testing on all RCDs.
With 2 wires only, very useful in case of no Neutral (i.e. 3-phase motor lines). - LOOP
・High test current range of 2Ω with 0.001Ω resolution.
・Zs Limit compares the values required by the Electrical Installations Standard with measured results. - RCD
・Type AC, A, F, B(General & Selective), EV and Variable RCDs.
・Single and Autotest, Ramp test and Contact voltage. - EARTH
Earth resistance test 2 and 3 wires with all accessories included. - INSULATION
Resistance test 100, 250, 500 & 1000V with auto discharge voltage. - CONTINUITY
Continuity test at 200mA or 15mA with a selectable buzzer for fast judgment. - PHASE ROTATION
On 3-phase lines with a clear indication of the sequence on the display. - VOLTS
TRMS Voltage measurements 2-600V, Mains Frequency. - HELP
The display shows how to connect the instrument according to the function selected. - SPD
Surge Protection Device test, for SPD that uses varistor. - PAT
Portable Appliance Tester function, for Insulation and Protective conductor resistance test - SAFETY
IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V, IEC 61557-1,2,3,4,5,6,7,10.
Specifications
Specifications: Kyoritsu 6516 Digital Multifunction Installation Tester
| Insulation resistance | SPD (Varistor) |
||||||
|---|---|---|---|---|---|---|---|
| Test voltage | 100V | 250V | 500V | 1000V | Max.1000V | ||
| Measuring ranges | 2.000/20.00/200.0MΩ (Auto-ranging) |
20.00/200.0/ 1000MΩ (Auto-ranging) |
20.00/200.0/ 2000MΩ (Auto-ranging) |
0-1049V (goes up by 1V) |
|||
| Accuracy | ±2%rdg±6dgt (2.000/20.00MΩ) ±5%rdg±6dgt (200.0MΩ) |
±2%rdg±6dgt (20.00/200.0MΩ) ±5%rdg±6dgt (1000MΩ) |
±2%rdg±6dgt (20.00/200.0MΩ) ±5%rdg±6dgt (2000MΩ) |
±5%rdg±5dgt | |||
| Rated current | 1.0-1.2mA @0.1MΩ |
1.0-1.2mA @0.25MΩ |
1.0-1.2mA @0.5MΩ |
1.0-1.2mA @1MΩ |
‐ | ||
| Output short circuit current | 1.5mA max | ‐ | |||||
| Loop impedance | |||||||
| Function | LOOP ATT | LOOP HIGH | |||||
| L-PE/L-N (3wire) |
L-PE (2wire) |
L-PE (0.01ΩRes) |
L-PE (0.001ΩRes) High test current (25A) |
L-N/L-L | |||
| Rated voltage | 100-260V (50/60Hz) |
48-260V (50/60Hz) |
48-260V (50/60Hz) |
100-260V (50/60Hz) |
48-500V (50/60Hz) |
||
| Impedance range | 20.00/200.0/2000Ω (Auto-ranging) |
20.00/200.0/2000Ω (Auto-ranging) |
2.000Ω | 20.00Ω | |||
| Accuracy | ±3%rdg±6dgt | ±3%rdg±10dgt | ±3%rdg±4dgt | ±3%rdg±25mΩ | ±3%rdg±4dgt | ||
| Nominal test current at 0Ω external loop: Magnitude/ Duration at 230V |
L-N:6A/60ms N-PE:10mA |
L-PE:15mA | 20Ω: 6A/20ms 200Ω: 0.5A/20ms 2000Ω: 15mA/500ms |
25A/20ms | 6A/20ms | ||
| PSC/PFC | |||||||
| Range | 2000A/20kA (L-N(PSC)/L-PE(PFC)) |
2000A/20kA (PFC) |
2000A/20kA (PFC) |
2000A/50kA (PFC) |
2000A/20kA (PSC) |
||
| Accuracy | PSC/PFC accuracy is derived from measured loop impedance specification and measured voltage specification | ||||||
| RCD | |||||||
| Rated voltage | 100-260V(50/60Hz) | ||||||
| Function | x1/2, x1,x5,Ramp,Auto,Uc | ||||||
| 6/10/30/100/300/500/1000mA/variable | |||||||
| RCD type | AC(G/S) | A(G/S) | F(G/S) | B(G/S) | EV | ||
| Trip current setting |
x1/2, x1,Uc |
10/30/100/300/ 500/1000mA(G) 10/30/100/ 300/500(S) |
10/30/100/ 300/500mA |
10/30/100/ 300/500mA |
10/30/100/ 300mA |
6mA (x1 only) |
|
| x5 | 10/30/100mA | 10/30/100mA | 10/30/100mA | 10/30mA | - | ||
| Ramp | 10/30/100/ 300/500mA |
10/30/100/ 300/500mA |
10/30/100/ 300/500mA |
10/30/100/ 300mA |
6mA | ||
| Accuracy | Trip current |
x1/2 | -8 - -2% | -10 - 0% | -10 - 0% | -10 - 0% | - |
| x1 | +2 - +8% | 0 - +10% | 0 - +10% | 0 - +10% | 0 - +10% | ||
| x5 | +2 - +8% | 0 - +10% | 0 - +10% | 0 - +10% | - | ||
| Ramp | -4 - +4% | -10 - +10% | -10 - +10% | -10 - +10% | -10 - +10% | ||
| Trip time |
x1/2 | 2000ms(G/S):±1%rdg±2ms | - | ||||
| x1 | 550ms(G):±1%rdg±2ms,1000ms(S):±1%rdg±2ms | 10.5s:±1%±2㎳ | |||||
| x5 | 410ms(G/S):±1%rdg±2ms | - | |||||
| Continuity | |||||||
| Range | 20.00/200.0/2000Ω (Auto-ranging) | ||||||
| Open circuit voltage(DC) | 7-14V | ||||||
| Measuring current |
200mA | 200mA or more(2Ω or less) | |||||
| 15mA | 15mA±3mA(short-circuit) | ||||||
| Accuracy | ±2%rdg±8dgt | ||||||
| Volts | |||||||
| Range | 300.0/600V(Auto-ranging) | ||||||
| Measuring ranges |
Volts | 2-600V | |||||
| Frequency | 45-65Hz | ||||||
| Accuracy | Volts | ±2%rdg±4dgt | |||||
| Frequency | ±0.5%rdg±2dgt | ||||||
| Phase Rotation | |||||||
| Rated voltage | 48-600V(45-65Hz) | ||||||
| Remarks | Remarks Correct phase sequence: are displayed “1.2.3” and mark Reversed phase sequence: are displayed “3.2.1” and mark |
||||||
| Earth | |||||||
| Range | 20.00/200.0/2000Ω(Au to-ranging) | ||||||
| Accuracy | ±2%rdg±0.08Ω(20.00Ω) ±2%rdg±3dgt(200.0/2000Ω) |
||||||
| General | |||||||
| Applicable standards | IEC 61010-1 CAT IV 300V / CAT III 600 V Pollution degree 2 IEC 61010-2-034, IEC 61557-1,2,3,4,5,6,7,10 IEC 60529(IP40), IEC 61326(EMC) |
||||||
| Power source | LR6 (AA) (1.5V) ×8 | ||||||
| Communication interface | USB | ||||||
| Dimension / Weight | 136(L) × 235(W) × 114(D) mm / 1350g (including batteries) | ||||||
| Accessories | Mains test lead※1 7281 (Test leads with remote control switch) 7246 (Distribution board test lead) 7228A (Earth resistance test leads) 8041 (Auxiliary earth spikes[2 spikes/1 set]) 9084 (Soft case) 9142 (Carrying case) 9151 (Shoulder strap) 9199 (Shoulder pad) 8212-USB (USB adapter) LR6(AA) × 8 Instruction manual Calibration certificate |
||||||
| Optional Accessories | 8259 (Adapter for measurement terminal) 7272 (Precision measurement cord set) 8017A (Extension prod long) 8602 (EVSE ADAPETER) |
||||||
